PS10-390M-RC
ActiveAllied Components International
39UH +/-10% POWER INDUCTOR
PS10-390M-RC
ActiveAllied Components International
39UH +/-10% POWER INDUCTOR
Description
General part information
PS10-390M-RC

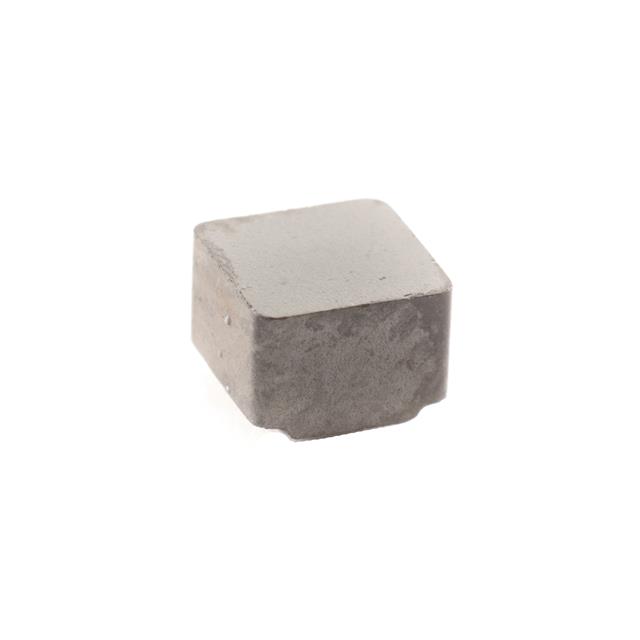

39 µH Shielded Wirewound Inductor 1.85Ohm Max 1515 (4040 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | PS10-390M-RC |
|---|---|
| Current - Saturation (Isat) | 0.46 mA |
| DC Resistance (DCR) (Max) | 1.85 Ohm |
| Frequency - Self Resonant | 21 MHz |
| Height - Seated (Max) | 0.116 in |
| Inductance | 39 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 1515 (4040 Metric) |
| Q | 33 |
| Shielding | Shielded |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.15 in |
| Tolerance | 20 % |
| Type | Wirewound |
