Description
General part information

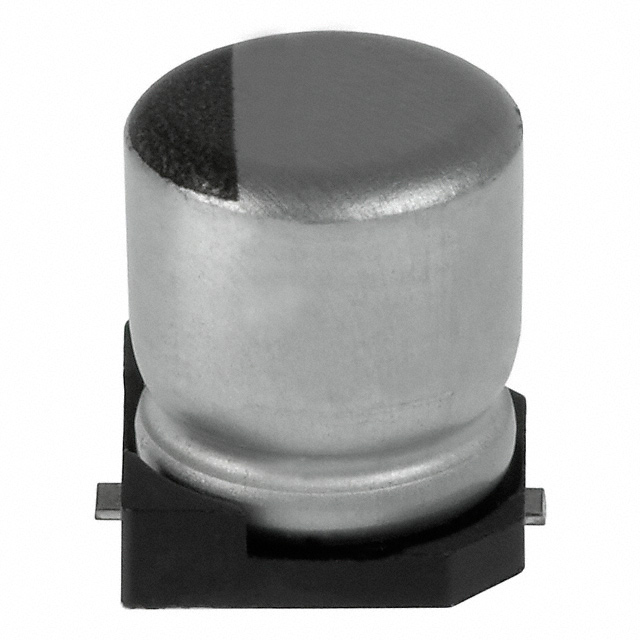

EMVL500ARA1R0MD60G
1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EMVL500ARA1R0MD60G |
|---|---|
| Applications | General Purpose |
| Capacitance | 1 µF |
| Height - Seated (Max) | 0.236 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 6.2 mA, 11.16 mA |
| Size / Dimension Diameter | 0.157 in |
| Surface Mount Land Length | 0.169 in |
| Surface Mount Land Width | 0.169 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
