AEC100M35V6R311
ActiveLumimax Optoelectronic Technology

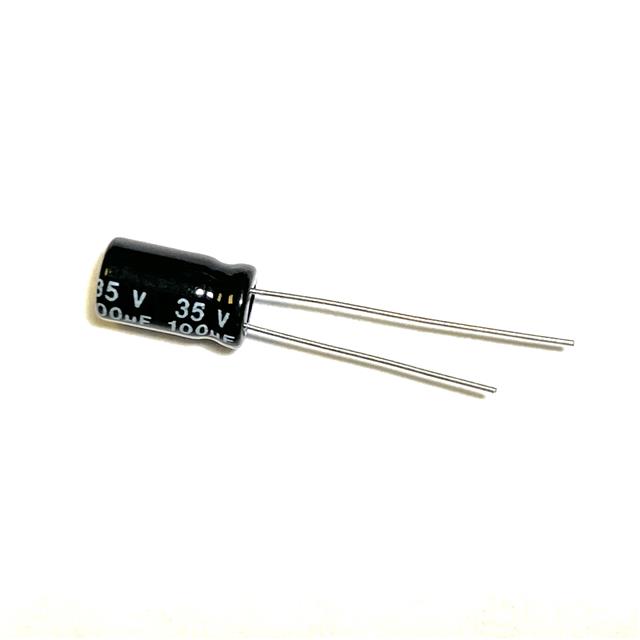

CAP ALUM 100UF 20% 35V RADIAL TH
AEC100M35V6R311
ActiveLumimax Optoelectronic Technology
CAP ALUM 100UF 20% 35V RADIAL TH
Description
General part information
AEC100M35V6R311
100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AEC100M35V6R311 |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.098 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
