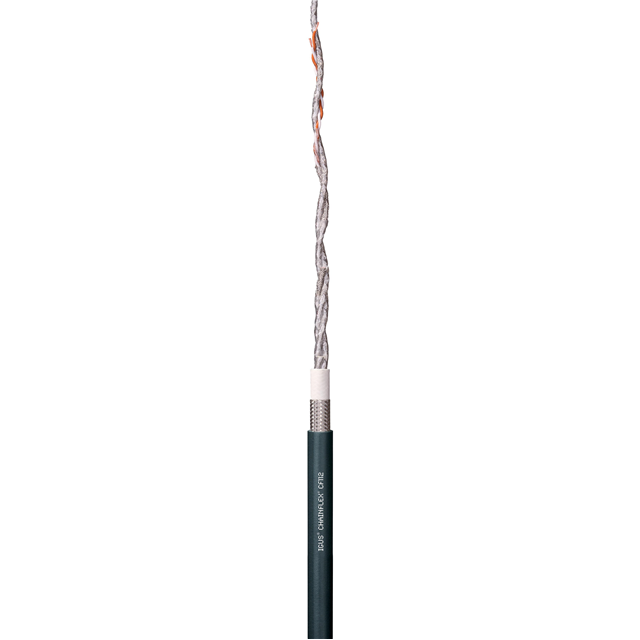

CF112-02-03-02
ActiveIgus
MULTI-PAIR 6COND 24AWG GRAY FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CF112-02-03-02 | CF112 Series |
|---|---|---|
| Cable Type | Multi-Pair | Multi-Pair |
| Conductor Insulation | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Features | Abrasion Resistant, Oil Resistant, Flame Retardant, UV Resistant | Abrasion Resistant, Oil Resistant, Flame Retardant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.394 in | 0.374 - 0.571 in |
| Jacket (Insulation) Diameter [diameter] | 10.01 mm | 9.5 - 14.5 mm |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Gray | Gray |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Number of Conductors | 6 | 4 - 12 |
| Ratings | UL Style 20233 | UL Style 20233 |
| Shield Coverage | 90 %, 100 % | 90 - 100 % |
| Shield Material | Copper, Tinned, Aluminum | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid | Foil, Braid |
| Usage | Industrial, Data | Industrial, Data |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 20 - 24 AWG |
CF112 Series
MULTI-PAIR 12CON 20AWG GRAY FEET
| Part | Jacket (Insulation) Material | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Shield Type | Length | Conductor Insulation | Wire Gauge | Voltage | Conductor Material | Ratings | Features | Number of Conductors | Jacket Color | Cable Type | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Igus CF112-05-06-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.571 in | 14.5 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 20 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 12 | Gray | Multi-Pair | |
Igus CF112-02-03-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.394 in | 10.01 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 24 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 6 | Gray | Multi-Pair | Data, Industrial |
Igus CF112-05-04-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.512 in | 13.01 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 20 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 8 | Gray | Multi-Pair | |
Igus CF112-02-02-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.374 in | 9.5 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 24 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 4 | Gray | Multi-Pair | Data, Industrial |
Igus CF112-02-05-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.453 " | 11.51 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 24 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 10 | Gray | Multi-Pair | Data, Industrial |
Igus CF112-05-02-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.453 " | 11.51 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 20 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 4 | Gray | Multi-Pair | |
Igus CF112-02-04-02 | Polyurethane (PU) | Aluminum, Copper, Tinned | 0.433 in | 11 mm | 90 %, 100 % | Braid, Foil | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | 24 AWG | 300 V | Copper, Bare | UL Style 20233 | Abrasion Resistant, Flame Retardant, Oil Resistant, UV Resistant | 8 | Gray | Multi-Pair |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.30 | |
| 100 | $ 6.06 | |||
| 500 | $ 5.82 | |||
| 1000 | $ 5.08 | |||
Description
General part information
CF112 Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
