1001-1551-005

Active

Radiall USA, Inc.

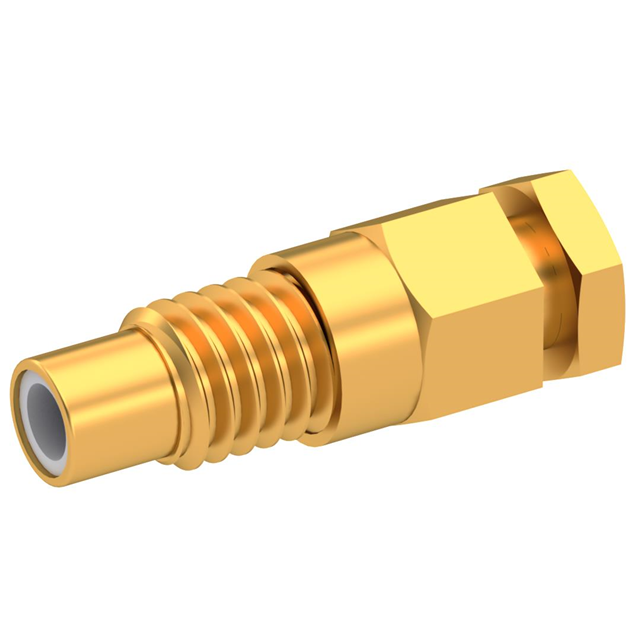

SMC / STRAIGHT JACK MALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CLAMP T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 32.33

General part information

SMC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1001-1551-005	1001-1551 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RG-178DS	179, RG-174, 316, RG-178, RG-178DS
Cable Group	-	196
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Male Pin, Jack	Male Pin, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Voltage Rating	250 VDC	250 - 335 V

SMC / STRAIGHT JACK MALE CLAMP T

Part	Voltage Rating	Cable Group	Connector Style	Number of Ports	Contact Termination	Body Material	Dielectric Material	Mating Cycles	Connector Type	Center Contact Material	Center Contact Plating	Shield Termination	Frequency - Max [Max]	Body Finish	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Mounting Type	Housing Color	Cable Group
Radiall USA, Inc. 1001-1551-003	335 V	179, 316, RG-174	SMC	1	Solder	Brass	Polytetrafluoroethylene (PTFE)	500	Jack, Male Pin	Brass	Gold	Clamp	10 GHz	Gold	50 Ohms	-65 ░C	165 °C	0.25 dB	Free Hanging (In-Line)	Gold
Radiall USA, Inc. 1001-1551-002	250 VDC	RG-178	SMC	1	Solder	Brass	Polytetrafluoroethylene (PTFE)	500	Jack, Male Pin	Brass	Gold	Clamp	10 GHz	Gold	50 Ohms	-65 ░C	165 °C	0.25 dB	Free Hanging (In-Line)	Gold	196
Radiall USA, Inc. 1001-1551-005	250 VDC	RG-178DS	SMC	1	Solder	Brass	Polytetrafluoroethylene (PTFE)	500	Jack, Male Pin	Brass	Gold	Clamp	10 GHz	Gold	50 Ohms	-65 ░C	165 °C	0.25 dB	Free Hanging (In-Line)	Gold
