N10268-52E3PC - N10268-52E3PC

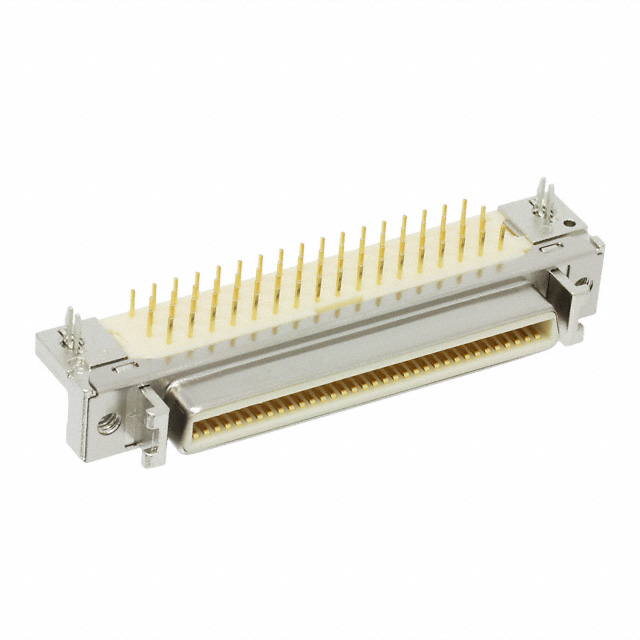

N10268-52E3PC

Active
3M

JE150333613 N10268-52E3PC=68/MDR/RC/RA/RECP/HITEMP/4-40/.11TAIL/30MIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMDR Series Qualification Report+1
N10268-52E3PC - N10268-52E3PC

N10268-52E3PC

Active
3M

JE150333613 N10268-52E3PC=68/MDR/RC/RA/RECP/HITEMP/4-40/.11TAIL/30MIN

Deep-Dive with AI

DocumentsDatasheetMDR Series Qualification Report+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationN10268-52E3PCN10268 Series
Connector StyleOuter Shroud ContactsOuter Shroud Contacts
Connector TypeReceptacleReceptacle
Contact FinishGoldGold
Contact Finish Thickness0.76 Ám0.76 Ám
Contact Finish Thickness30 Áin30 Áin
FeaturesShielded, Board LockShielded, Board Lock
Flange FeatureHousing/Shell (4-40), LatchblocksHousing/Shell (4-40), Latchblocks, Housing/Shell (M2.5), Housing/Shell
Flange Feature-2.6 M
Mounting TypeThrough Hole, Right Angle, Panel MountThrough Hole, Right Angle, Panel Mount
Number of Positions6868
Number of Rows22
TerminationSolderSolder

N10268 Series

JE150333613 N10268-52E3PC=68/MDR/RC/RA/RECP/HITEMP/4-40/.11TAIL/30MIN

PartMounting TypeContact FinishNumber of PositionsFlange FeatureContact Finish ThicknessContact Finish ThicknessConnector TypeNumber of RowsTerminationConnector StyleFeaturesFlange Feature
3M
N10268-52E3PC
Panel Mount, Right Angle, Through Hole
Gold
68
Housing/Shell (4-40), Latchblocks
0.76 Ám
30 Áin
Receptacle
2
Solder
Outer Shroud Contacts
Board Lock, Shielded
3M
N10268-5243PC
Panel Mount, Right Angle, Through Hole
Gold
68
Housing/Shell (4-40), Latchblocks
0.76 Ám
30 Áin
Receptacle
2
Solder
Outer Shroud Contacts
Shielded
3M
N10268-6212PC
Panel Mount, Through Hole
Gold
68
Housing/Shell (M2.5), Latchblocks
0.76 Ám
30 Áin
Receptacle
2
Solder
Outer Shroud Contacts
Shielded
3M
N10268-52B2PC
Panel Mount, Right Angle, Through Hole
Gold
68
Housing/Shell
0.76 Ám
30 Áin
Receptacle
2
Solder
Outer Shroud Contacts
Board Lock, Shielded
2.6 M
3M
N10268-52B2VC
Panel Mount, Right Angle, Through Hole
Gold
68
Housing/Shell
0.76 Ám
30 Áin
Receptacle
2
Solder
Outer Shroud Contacts
Board Lock, Shielded
2.6 M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 16.04
10$ 13.90
25$ 13.17
40$ 12.98
100$ 11.45
300$ 10.69
500$ 10.46
1000$ 9.93
NewarkEach 100$ 15.05
250$ 13.98
500$ 13.06

Description

General part information

N10268 Series

68 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
