C0510X5R1A474M030BC
ActiveTDK Corporation
CAP CER 0.47UF 10V X5R 0204
C0510X5R1A474M030BC
ActiveTDK Corporation
CAP CER 0.47UF 10V X5R 0204
Description
General part information
C0510X5R1A474M030BC

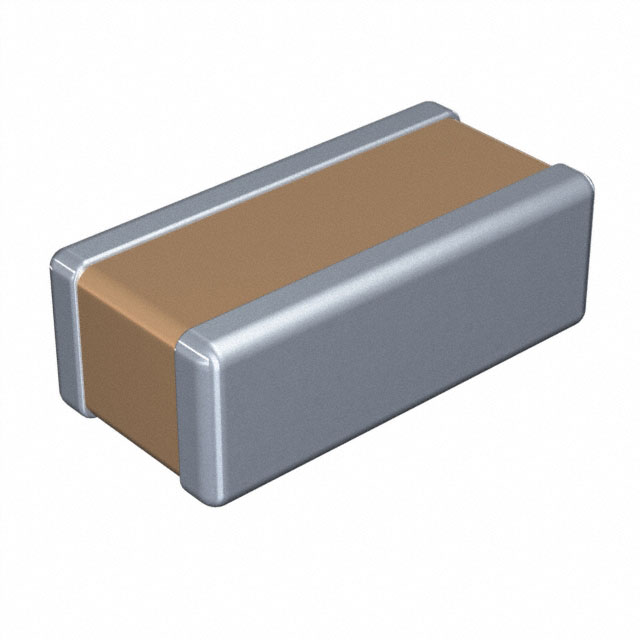

0.47 µF ±20% 10V Ceramic Capacitor X5R 0204 (0510 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C0510X5R1A474M030BC |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 0.47 µF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0204 (0510 Metric) |
| Size / Dimension Length | 0.02 in |
| Size / Dimension Width | 0.039 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.014 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
