SPHWH1L5N605XEP5A2

Active

Samsung Semiconductor, Inc.

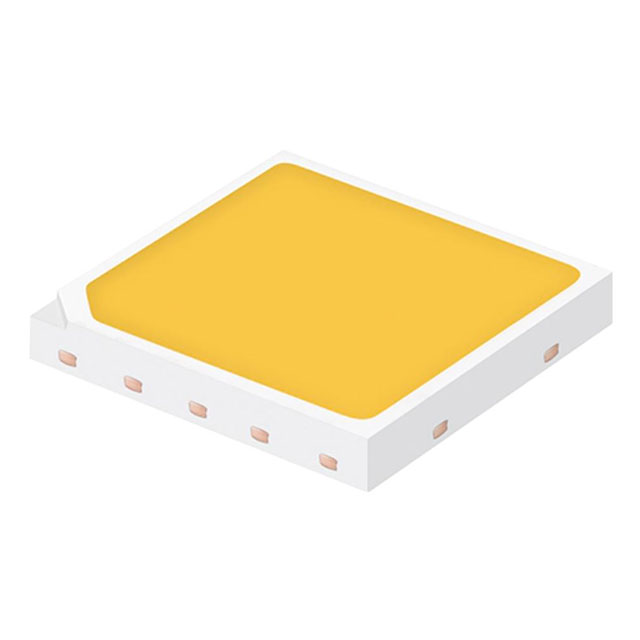

LED LH508A+ COOL WHT 6500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLH508C General Preliminary~Datasheet

SPHWH1L5N605XEP5A2

Active

Samsung Semiconductor, Inc.

LED LH508A+ COOL WHT 6500K SMD

Deep-Dive with AI

DocumentsLH508C General Preliminary~Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.28
		10000	$ 0.28

Description

General part information

SPHWH1 Series

LED Lighting LH508A+ White, Cool 6500K 5-Step MacAdam Ellipse 24.5V 160mA 120° 2020 (5050 Metric)

Documents

Technical documentation and resources

LH508C General Preliminary~

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWH1L5N605XEP5A2	SPHWH1 Series

CCT (K)	6500 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	220 mA	1.5 - 880 mA
Current - Test	-	350 - 640 mA
Flux @ 25°C, Current - Test	-	420 - 720 lm
Flux @ 25°C, Current - Test	-	510 - 600 lm
Flux @ 25°C, Current - Test	-	470 - 560 lm
Flux @ 85°C, Current - Test	-	105 - 145 lm
Flux @ 85°C, Current - Test	-	120 - 160 lm
Flux @ 85°C, Current - Test	-	90 - 130 lm
Height - Seated (Max)	-	0.7 mm
Height - Seated (Max)	-	0.028 in
Height - Seated (Max)	-	2.06 mm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 - 0.081 "
Lumens/Watt @ Current - Test	-	105 - 184 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	2020	2020, 2020 (5250 Metric), 1414
Package / Case	5050 Metric	5050 Metric, 3535 Metric
Size / Dimension	-	3.5 mm
Size / Dimension	-	3.5 mm
Size / Dimension [x]	0.197 in	0.197 - 0.204 in
Size / Dimension [x]	5 mm	0.138 - 5.18 mm
Size / Dimension [y]	5 mm	0.138 - 5 mm
Size / Dimension [y]	0.197 "	0.197 "
Supplier Device Package	SMD	SMD, 3535
Supplier Device Package	-	2020
Thermal Resistance of Package	-	1.9 °C/W
Thermal Resistance of Package	-	4 °C/W
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	120 °	116 - 120 °
Voltage - Forward (Vf) (Typ)	24.5 V	2.85 - 25 V

SPHWH1 Series

LED LH508A+ COOL WHT 5000K SMD

...

Part	Lumens/Watt @ Current - Test	Mounting Type	Supplier Device Package	Color	CRI (Color Rendering Index)	Current - Test	Viewing Angle	Package / Case	Package / Case	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Flux @ 25°C, Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	CCT (K)
Samsung Semiconductor, Inc. SPHWH1L5N605YER3A1	156 lm/W	Surface Mount	SMD	Cool, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	610 lm	0.197 in	5 mm	0.197 "	5 mm
Samsung Semiconductor, Inc. SPHWH1L5N603YET5A2		Surface Mount	SMD	Neutral, White	70	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA		0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N603YEV3A1	159 lm/W	Surface Mount	SMD	Warm, White	70	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	620 lm	0.197 in	5 mm	0.197 "	5 mm	3000 K
Samsung Semiconductor, Inc. SPHWH1L5N603XEV5A1	158 lm/W	Surface Mount	SMD	Warm, White	70		120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	24.5 V	220 mA	620 lm	0.197 in	5 mm	0.197 "	5 mm	3000 K
Samsung Semiconductor, Inc. SPHWH1L5N605YET3A2		Surface Mount	SMD	Neutral, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA		0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N605XET5A2		Surface Mount	SMD	Neutral, White	80		120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	24.5 V	220 mA		0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N605YEU3A1	152 lm/W	Surface Mount	SMD	Warm, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	595 lm	0.197 in	5 mm	0.197 "	5 mm	3500 K
Samsung Semiconductor, Inc. SPHWH1L5N605YER5A1	156 lm/W	Surface Mount	SMD	Cool, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	610 lm	0.197 in	5 mm	0.197 "	5 mm	5000 K	5-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SPHWH1L5N603XET5A1	166 lm/W	Surface Mount	SMD	Neutral, White	70		120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	24.5 V	220 mA	650 lm	0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N603YEP3A1	166 lm/W	Surface Mount	SMD	Cool, White	70	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	650 lm	0.197 in	5 mm	0.197 "	5 mm	6500 K
