704.230.508

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.230.508	704.230 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Pushbutton, Square	Pushbutton, Square
Illumination	Illuminated - Green	Illuminated - Green, Illuminated - Blue
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary	Momentary

CONFIG SW BODY PUSHBUTTON ILLUM

Part	Type	Requires	Actuator Type	Illumination	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series
EAO 704.230.508	Momentary	Contact Block(s), Illumination Source	Pushbutton, Square	Illuminated - Green	30.5 mm	04, EAO
EAO 704.230.6	Momentary	Contact Block(s), Illumination Source	Pushbutton, Square	Illuminated - Blue	22.3 mm	04, EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

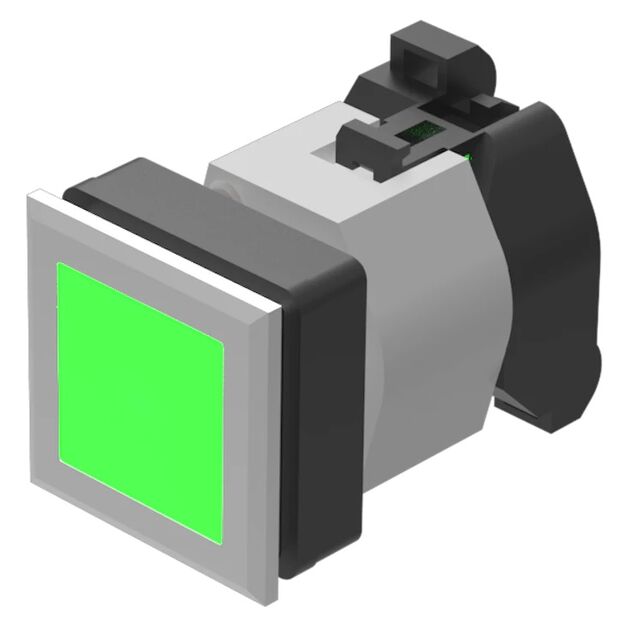

Configurable Switch Body Pushbutton, Square Illuminated - Green
