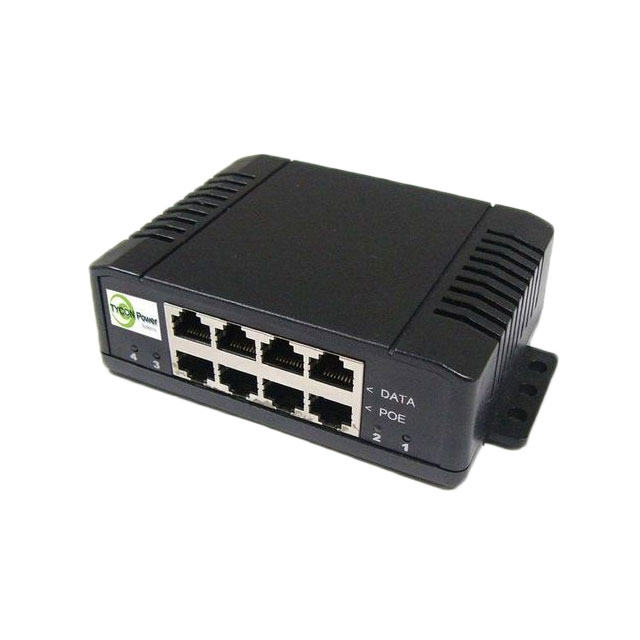

TP-MS4G-VHP

Active

Tycon Systems Inc.

4 PORT MID SPAN, VERY HIGH POWER

Search across all available documentation for this part.

Active

Tycon Systems Inc.

4 PORT MID SPAN, VERY HIGH POWER

Technical Specifications

Parameters and characteristics commom to parts in this series

4 PORT MID SPAN, VERY HIGH POWER

Part	Compliance	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Data Rate	Input Connector	Number of Ports	Current - Output	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]
Tycon Systems Inc. TP-MS4G-VHP	IEEE802.3ab	RJ45 (Data, Power)	60 V	20 VDC	Desktop	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)	8	1.8 A	Midspan Injector	3.5 in	1.5 "	4.6 "	88.9 mm	38.1 mm	116.8 mm	OCP, OVP, SCP	-30 ░C	60 °C
Tycon Systems Inc. TP-MS4X4	IEEE802.3af	RJ45 (Data, Power)	57 V	11 V	Desktop	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)	8	1 A	Midspan Injector	3.5 in	1.5 "	4.6 "	88.9 mm	38.1 mm	116.8 mm	OCP, OVP, SCP	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 260.28

General part information

Power Over Ethernet (POE) 8 Port Midspan Injector 10/100/1000 Mbps Data Rate
