Description
General part information

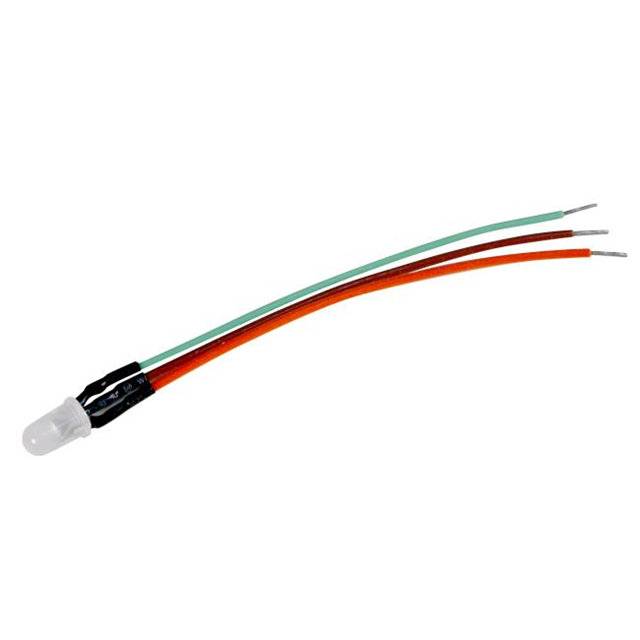

XL59M-SKA35W
Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red Radial - 3 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | XL59M-SKA35W |
|---|---|
| Color | Green, Red |
| Configuration | Common Cathode |
| Current - Test (Green) | 20 mA |
| Current - Test (Red) | 20 mA |
| Current - Test Colors | Red, Green |
| Height (Max) | 11.35 mm |
| Lens Color | White |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating (Green) | 1495 mcd |
| Millicandela Rating (Red) | 1195 mcd |
| Millicandela Rating Colors | Green, Red |
| Mounting Type | Through Hole |
| Package Dimension | 5 mm |
| Package Leads | 3 Leads |
| Package Name | T-1 3/4, T-1 3/4 (5mm), Radial |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) (Green) | 3.3 V |
| Voltage - Forward (Vf) (Typ) (Red) | 1.95 V |
| Voltage - Forward (Vf) (Typ) Color | Green, Red |
| Wavelength - Dominant (Green) | 525 nm |
| Wavelength - Dominant (Red) | 630 nm |
| Wavelength - Dominant Color | Green, Red |
| Wavelength - Peak (Green) | 515 nm |
| Wavelength - Peak (Red) | 650 nm |
| Wavelength - Peak Colors | Green, Red |
