9843 0605000

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9843 0605000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.14 mm
Jacket (Insulation) Diameter [diameter]	0.36 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	24 AWG

Part	Features	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Shield Type	Conductor Material	Shield Coverage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Material	Ratings
Belden Inc. 9843 0605000	Drain Wire	Poly-Vinyl Chloride (PVC)	9.14 mm	0.36 "	-30 ░C	80 C	Multi-Pair	Chrome	32 AWG	7	24 AWG	Braid Foil	Copper Tinned	90 % 100 %	Polyethylene (PE)	0.889 mm	0.035 in	6	Aluminum Copper Tinned	UL Style 2919

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.38

General part information

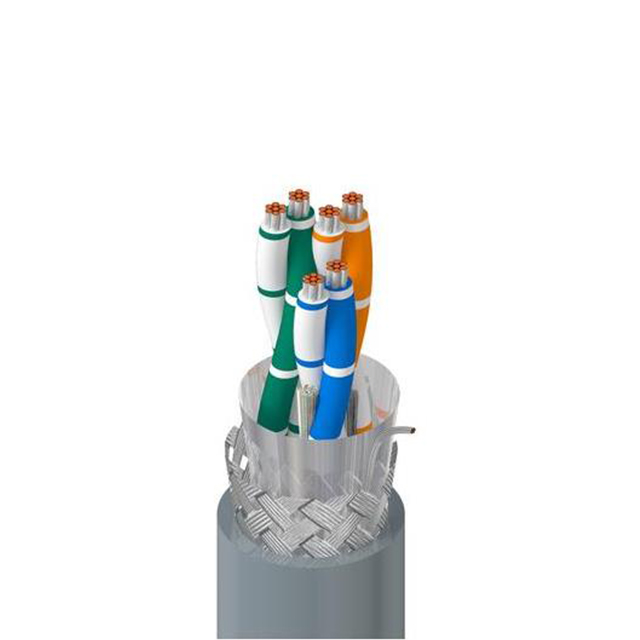

6 (3 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 5000' (1524.0m)
