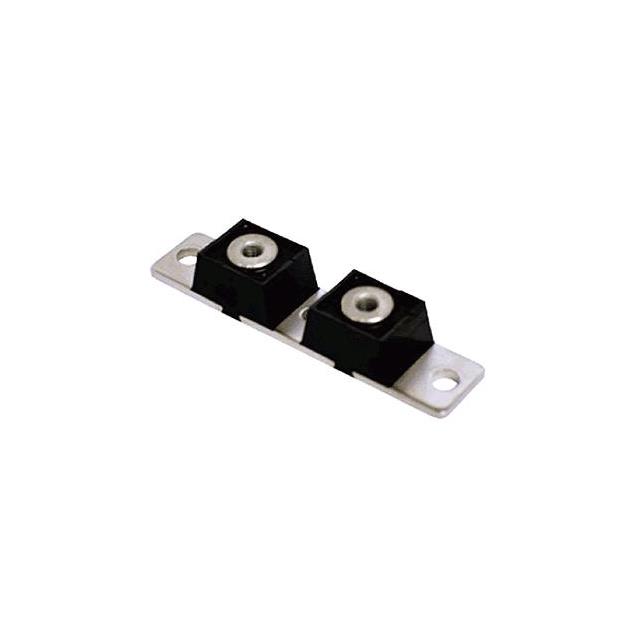

BKR400AB10

Active

SanRex Corporation

DIODE MODULE SCHOTT 100V 400A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE SCHOTT 100V 400A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	15	$ 50.18

General part information

Diode Array 1 Pair Common Cathode 100 V 400A Chassis Mount Module

Technical documentation and resources

Specification	BKR400AB10	BKA400 Series

Current - Average Rectified (Io) (per Diode)	400 A	200 - 400 A
Current - Reverse Leakage @ Vr	40 mA	40 - 140 mA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Speed	200 mA, 500 ns	200 - 500 mA
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	50 - 100 V
Voltage - Forward (Vf) (Max) @ If	-	730 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Technology	Mounting Type	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Current - Reverse Leakage @ Vr
SanRex Corporation BKR400ABZ50	50 V	200 A	Schottky	Chassis Mount	200 mA, 500 ns	150 °C	-40 °C	Module	730 mV	1 Pair Common Cathode
SanRex Corporation BKA400AA10	100 V	400 A	Schottky	Chassis Mount	200 mA, 500 ns	150 °C	-40 °C	Module		1 Pair Common Cathode	140 mA
SanRex Corporation BKR400AB10	100 V	400 A	Schottky	Chassis Mount	200 mA, 500 ns	150 °C	-40 °C	Module		1 Pair Common Cathode	40 mA
