FMHR0069-100CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-TYPE NJACK 3
FMHR0069-100CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-TYPE NJACK 3
Description
General part information
FMHR0069-100CM

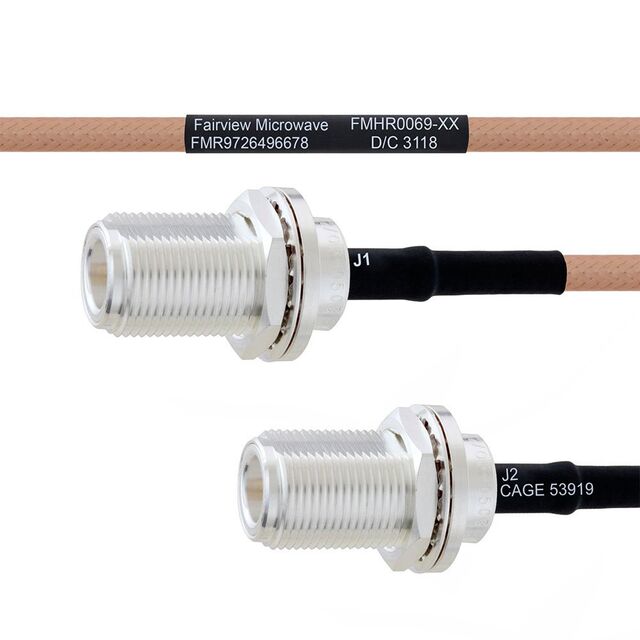

Cable Assembly Coaxial N-Type to N-Type RG-400 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0069-100CM |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
