OB3-LF

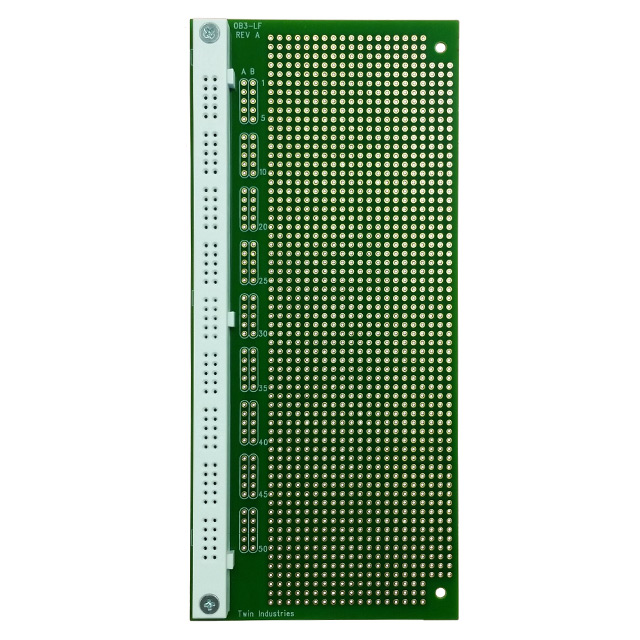

ActivePCBS & BREADBOARDS OMNI-BOARD PROTOBOARD. FR4 MATERIAL 3.0" X 6.7" 0.062" THICK . INCLUDES 2X5X9 SOLDERLESS BREADBOARD. INCLUDES 3MM HARDWARE TO ATTACH BREADBOARD TO PCB.
OB3-LF
ActivePCBS & BREADBOARDS OMNI-BOARD PROTOBOARD. FR4 MATERIAL 3.0" X 6.7" 0.062" THICK . INCLUDES 2X5X9 SOLDERLESS BREADBOARD. INCLUDES 3MM HARDWARE TO ATTACH BREADBOARD TO PCB.
Description
General part information
OB3-LF
Solderless Breadboard Distribution Strip (No Frame) 6.70" x 3.00" (170.2mm x 76.2mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | OB3-LF |
|---|---|
| Number of Distribution Buses | 1 |
| Number of Tie Points (Total) | 90 |
| Size / Dimension Length | 6.7 in |
| Size / Dimension Width | 3 in |
| Type | Distribution Strip (No Frame) |
