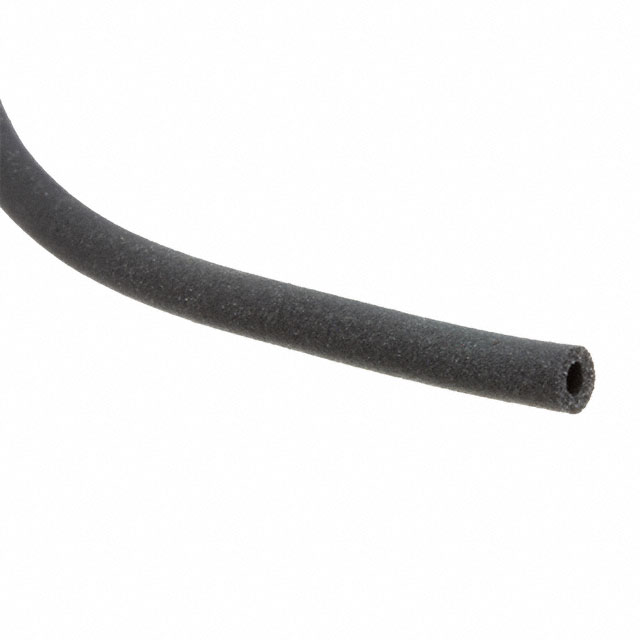

10-04-W204-S6305

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL

Search across all available documentation for this part.

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10-04-W204-S6305	10-04 Series

Attachment Method	No Adhesive	No Adhesive
Length	-	Enter Number of Feet in Order Quantity
Material	Conductive Elastomer	Conductive Elastomer
Operating Temperature [Max]	66 °C	66 - 200 °C
Operating Temperature [Min]	-29 °C	-55 - -29 °C
Plating	Nickel	Nickel
Shape	Round	Round
Spool Size	-	30.48 m
Spool Size	-	100 ft
Spool Size	-	300 - 600 '
Spool Size	-	91.44 - 182.88 m
Type	Gasket	Gasket
Width	3.17 mm	1.02 - 6.35 mm
Width	0.125 in	0.125 - 0.25 in
Width	-	0.04 - 0.156 in
Width	-	2.03 - 2.62 mm
Width	-	0.08 - 0.103 in
Width	-	1.57 - 3.96 mm

RFI GASKET ELASTOMER NICKEL FOOT

Part	Type	Width [y]	Width	Material	Operating Temperature [Max]	Operating Temperature [Min]	Attachment Method	Plating	Shape	Length	Width [x]	Width [x]	Width [y]	Spool Size [custom]	Spool Size [custom]	Spool Size	Spool Size	Width
Parker Chomerics 10-04-6386-6502	Gasket	0.04 in	1.02 mm	Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round
Parker Chomerics 10-04-1720-1298	Gasket				66 °C, 200 °C	-55 °C, -29 °C			Round	Enter Number of Feet in Order Quantity	2.62 mm	0.103 in
Parker Chomerics 10-04-2463-1298	Gasket	0.125 in			66 °C	-29 °C			Round				3.18 mm
Parker Chomerics 10-04-2657-S6305	Gasket			Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round	Enter Number of Feet in Order Quantity	2.03 mm	0.08 "		30.48 m	100 ft
Parker Chomerics 10-04-8363-1298	Gasket				66 °C	-29 °C			Round	Enter Number of Feet in Order Quantity	2.62 mm	0.103 in
Parker Chomerics 10-04-2463-S6305	Gasket	0.125 in		Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round				3.18 mm
Parker Chomerics 10-04-W163-S6305	Gasket	0.062 in		Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round	Enter Number of Feet in Order Quantity			1.57 mm			600 '	182.88 m
Parker Chomerics 10-04-2657-6502	Gasket			Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round	Enter Number of Feet in Order Quantity	2.03 mm	0.08 "		30.48 m	100 ft
Parker Chomerics 10-04-W204-6502	Gasket		3.17 mm	Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round									0.125 in
Parker Chomerics 10-04-W204-S6305	Gasket		3.17 mm	Conductive Elastomer	66 °C	-29 °C	No Adhesive	Nickel	Round									0.125 in
