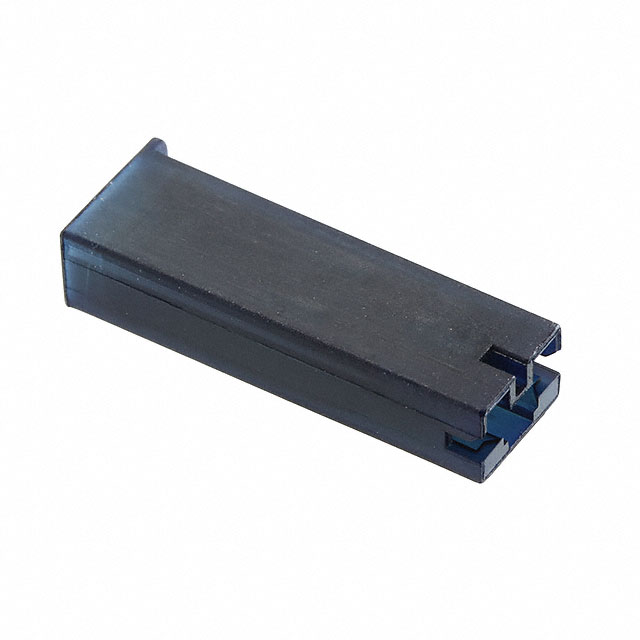

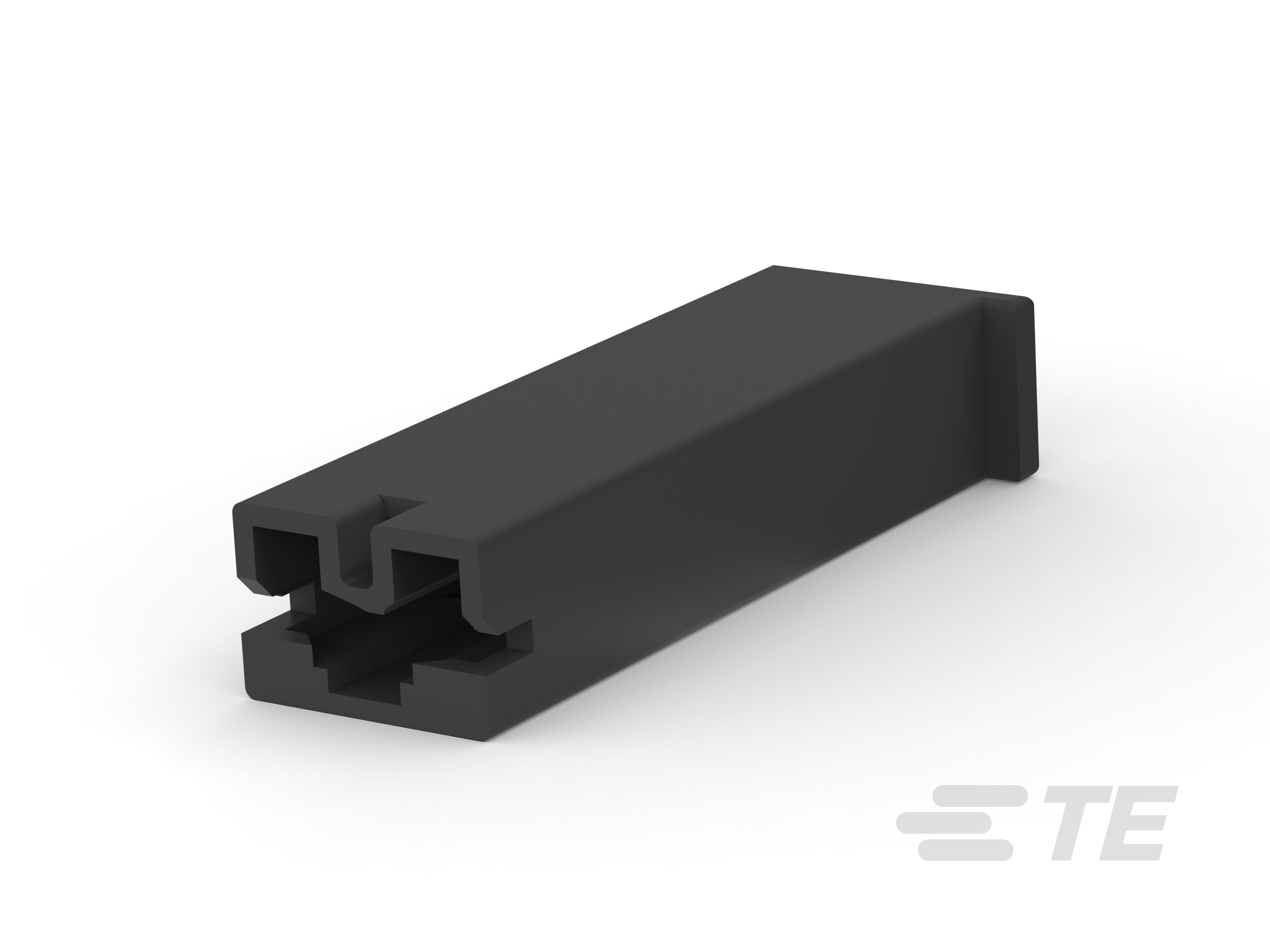

172074-2

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 0.187 1POS BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

172074-2

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 0.187 1POS BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172074-2

Color	Black
For Use With/Related Products	4.75 mm
For Use With/Related Products	0.187 "
Gender	Female, Receptacle
Material	Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Style	Housing
Terminal Size	0.187 "
Terminal Size	4.75 mm
Terminal Type	Disconnect, Quick Connect

Positive Lock 187 Series

Part	Terminal Type	Contact Finish	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter	Insulation	Contact Material	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Gender	Tab Length	Tab Length	Length - Overall [x]	Length - Overall [x]	Mounting Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Terminal Size	Terminal Size	For Use With/Related Products	For Use With/Related Products	Number of Positions	Note	Color	Material	Style	Stacking Direction
TE Connectivity Raychem Cable Protection 2390259-1	Standard	Tin	0.169 in	0.118 in	3 mm 4.29 mm	Non-Insulated	Brass	0.22 in	5.6 mm	0.031 "	0.79 mm	Female	0.197 in	5 mm	0.699 in	17.75 mm	Free Hanging (In-Line)	Crimp
TE Connectivity Raychem Cable Protection 3-2299287-1	Angled - 90° Flag	Tin				Mating End Insulated	Brass	0.187 in	4.75 mm	0.02 "	0.51 mm	Female					Free Hanging (In-Line) Right Angle	Crimp	20 AWG	24 AWG	2.79 mm	0.11 "	1.52 mm	0.06 in
TE Connectivity Raychem Cable Protection 173723-1	Standard	Tin				Non-Insulated	Brass	0.187 in	4.75 mm	0.02 "	0.51 mm	Female	0.287 in	7.3 mm	0.677 in	17.2 mm	Free Hanging (In-Line)	Crimp	20 AWG	26 AWG	3.61 mm	0.142 in	1.3 mm	0.051 in
TE Connectivity Raychem Cable Protection 172210-7	Disconnect Quick Connect											Female Receptacle					Free Hanging (In-Line)								0.187 "	4.75 mm	4.75 mm	0.187 "	2	Contacts Not Included	Red	Polyamide (PA66) Nylon 6/6	Housing	Top to Bottom
TE Connectivity Raychem Cable Protection 172074-2	Disconnect Quick Connect											Female Receptacle					Free Hanging (In-Line)								0.187 "	4.75 mm	4.75 mm	0.187 "	1	Contacts Not Included	Black	Nylon	Housing
TE Connectivity Raychem Cable Protection 172074-4	Disconnect Quick Connect											Female Receptacle					Free Hanging (In-Line)								0.187 "	4.75 mm	4.75 mm	0.187 "	1	Contacts Not Included	Yellow	Nylon	Housing
TE Connectivity Raychem Cable Protection 170330-1	Standard	Tin				Non-Insulated	Brass	0.187 in	4.75 mm	0.02 "	0.51 mm	Female			0.85 "	21.59 mm	Free Hanging (In-Line)	Crimp	20 AWG	24 AWG	2.69 mm	0.106 "	1.5 mm	0.059 "
TE Connectivity Raychem Cable Protection 179720-7	Disconnect Quick Connect											Female Receptacle					Free Hanging (In-Line)								0.187 "	4.75 mm	4.75 mm	0.187 "	2	Contacts Not Included	Red	Polyamide (PA) Nylon	Housing	Side to Side
TE Connectivity Raychem Cable Protection 2-1743068-1	Disconnect Quick Connect											Female Receptacle					Free Hanging (In-Line)								0.187 "	4.75 mm					Natural	Polyamide (PA) Nylon	Housing	Multiple
TE Connectivity Raychem Cable Protection 1-174587-1	Disconnect Quick Connect											Female Receptacle					Free Hanging (In-Line)								0.187 "	4.75 mm	4.75 mm	0.187 "	2	Contacts Not Included	Natural	Nylon	Housing	Top to Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.15
		25	$ 0.14
		50	$ 0.13
		100	$ 0.13
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.10
		3000	$ 0.10

Description

General part information

Positive Lock 187 Series

1 Position Housing Connector Female, Receptacle Black 0.187" (4.75mm)
