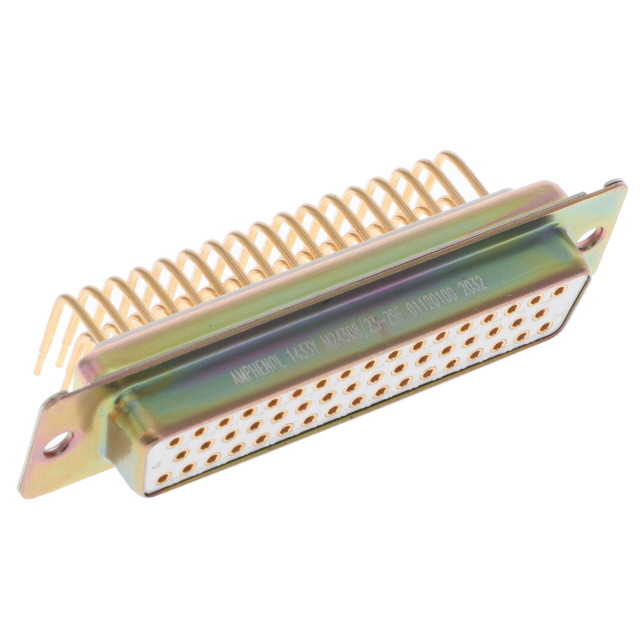

M24308/23-29F

Active

Amphenol Positronic

DSUB CONN,R/ANGLE, SOCKET, CADMI

Search across all available documentation for this part.

Active

Amphenol Positronic

DSUB CONN,R/ANGLE, SOCKET, CADMI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/23-29F	M24308/23 Series

Backset Spacing	0.283 in	0.283 in
Backset Spacing	7.2 mm	7.2 mm
Color	Natural	Natural
Connector Style	D-Sub	High Density, D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	7.5 A	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Features	Mounting Brackets	Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	50	50 - 78
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout	5	5
Termination	Solder	Solder
Wire Gauge [Max]	26 AWG	26 - 28 AWG
Wire Gauge [Min]	20 AWG	20 - 22 AWG

DSUB CONN,STRAIGHT, SOCKET, CADM

Part	Connector Style	Dielectric Material	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Color	Flange Feature	Contact Material	Connector Type	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Mounting Type	Contact Type	Current Rating (Amps)	Contact Finish	Shell Size, Connector Layout	Features	Number of Rows	Backset Spacing	Backset Spacing
Amphenol Positronic M24308/23-65F	D-Sub, High Density	Polyester, Glass Filled	Solder	28 AWG	22 AWG	Natural	Housing/Shell (Unthreaded)	Copper Alloy	Receptacle, Female Sockets	Steel, Yellow Cadmium Plated	-55 °C	125 °C	UL94 V-0	78	Panel Mount, Through Hole	Signal	5 A	Gold
Amphenol Positronic M24308/23-29F	D-Sub	Polyester, Glass Filled	Solder	26 AWG	20 AWG	Natural	Housing/Shell (Unthreaded)	Copper Alloy	Receptacle, Female Sockets	Steel, Yellow Cadmium Plated	-55 °C	125 °C	UL94 V-0	50	Panel Mount, Right Angle, Through Hole	Signal	7.5 A	Gold	5	Mounting Brackets	3	0.283 in	7.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
