AIS328DQ
ActiveSTMicroelectronics

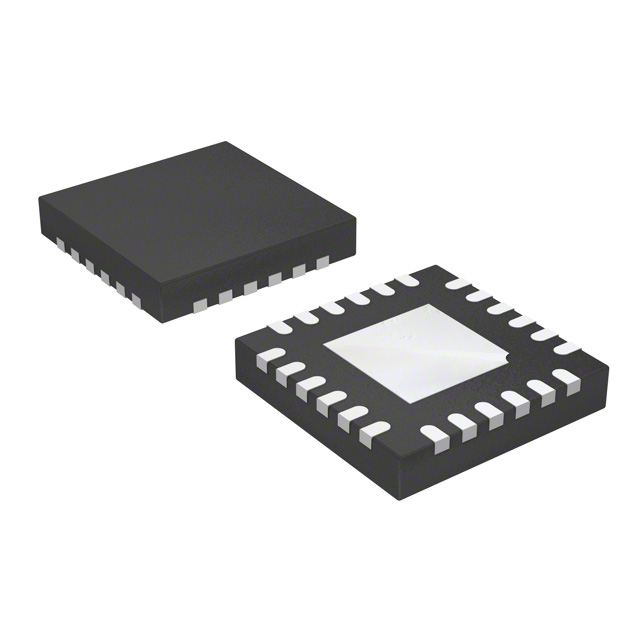

ACCELEROMETER 2-8G I2C/SPI 24QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIS328DQ
ActiveSTMicroelectronics
ACCELEROMETER 2-8G I2C/SPI 24QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AIS328DQ | AIS328 Series |
|---|---|---|
| - | - | |
| Acceleration Range | 4 g, 8 g | 4 - 8 g |
| Acceleration Range [Max] | 2 g | 2 g |
| Acceleration Range [Min] | -2 g | -2 g |
| Axis [x] | X | X |
| Axis [y] | Y | Y |
| Axis [z] | Z | Z |
| Bandwidth [Max] | 500 Hz | 500 Hz |
| Bandwidth [Min] | 25 Hz | 25 Hz |
| Contents | - | Board(s) |
| Features | Adjustable Bandwidth, Selectable Scale | Adjustable Bandwidth, Selectable Scale |
| Function | - | Accelerometer |
| Grade | Automotive | Automotive |
| Interconnect System | - | DIL24 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | I2C, SPI | I2C, SPI |
| Package / Case | 24-QFN | 24-QFN |
| Platform | - | Professional MEMS Tool |
| Qualification | AEC-Q100 | AEC-Q100 |
| Sensitivity (LSB/g) | 255 LSB/g, 1020 LSB/g | 255 - 1020 LSB/g |
| Suggested Programming Environment | - | Unico |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) |
| Type | Digital | Digital, Sensor |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.4 V | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
AIS328 Series
ADAPTOR BOARD, AIS328DQ, 3-AXIS ACCELEROMETER, FOR STEVAL-MKI109V3 MOTHERBOARD
| Part | Bandwidth [Min] | Bandwidth [Max] | Mounting Type | Package / Case | Type | Supplier Device Package | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Acceleration Range | Acceleration Range [Min] | Acceleration Range [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Qualification | Axis [z] | Axis [y] | Axis [x] | Features | Sensitivity (LSB/g) | Function | Suggested Programming Environment | Interconnect System | Platform | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-MKI110V1 | ||||||||||||||||||||||||||
STMicroelectronics AIS328DQ | 25 Hz | 500 Hz | Surface Mount | 24-QFN | Digital | 24-QFN (4x4) | Automotive | -40 °C | 105 ░C | 4 g, 8 g | -2 g | 2 g | 2.4 V | 3.6 V | I2C, SPI | AEC-Q100 | Z | Y | X | Adjustable Bandwidth, Selectable Scale | 255 LSB/g, 1020 LSB/g | |||||
STMicroelectronics STEVAL-MKI110V1 | Sensor | Accelerometer | Unico | DIL24 | Professional MEMS Tool | Board(s) | ||||||||||||||||||||
STMicroelectronics STEVAL-MKI110V1 | ||||||||||||||||||||||||||
STMicroelectronics STEVAL-MKI110V1 |
Description
General part information
AIS328 Series
Accelerometer X, Y, Z Axis ±2g, 4g, 8g 25Hz ~ 500Hz 24-QFN (4x4)
