1-770876-1

Active

TE Connectivity AMP Connectors

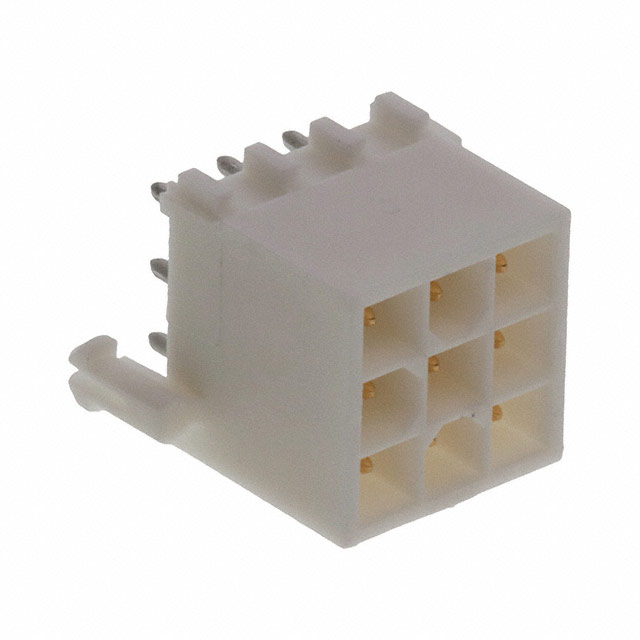

CONN HEADER VERT 9POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 9POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-770876-1	770876 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	9	9
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER VERT 9POS 4.14MM

Part	Connector Type	Contact Shape	Number of Rows	Insulation Material	Insulation Color	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Material Flammability Rating	Style	Shrouding	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type
TE Connectivity AMP Connectors 1-770876-1	Header	Circular	3	Nylon, Polyamide (PA)	White	600 VAC	4.45 mm	0.175 in	Gold	Varies by Wire Gauge	4.14 mm	0.163 in	Tin	13.5 mm	0.531 in	All	Locking Ramp	General Purpose	150 Áin	3.81 Ám	-20 C	105 ░C	Brass	Solder	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	9	4.14 mm	0.163 in	Through Hole	30 Áin	0.76 Ám	Male Pin
TE Connectivity AMP Connectors 770876-2	Header	Circular	3	Nylon, Polyamide (PA)	White	600 VAC	4.45 mm	0.175 in	Gold	Varies by Wire Gauge	4.14 mm	0.163 in	Tin-Lead	13.5 mm	0.531 in	All	Locking Ramp	General Purpose	150 Áin	3.81 Ám	-20 C	105 ░C	Brass	Solder	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	9	4.14 mm	0.163 in	Through Hole	30 Áin	0.76 Ám	Male Pin
