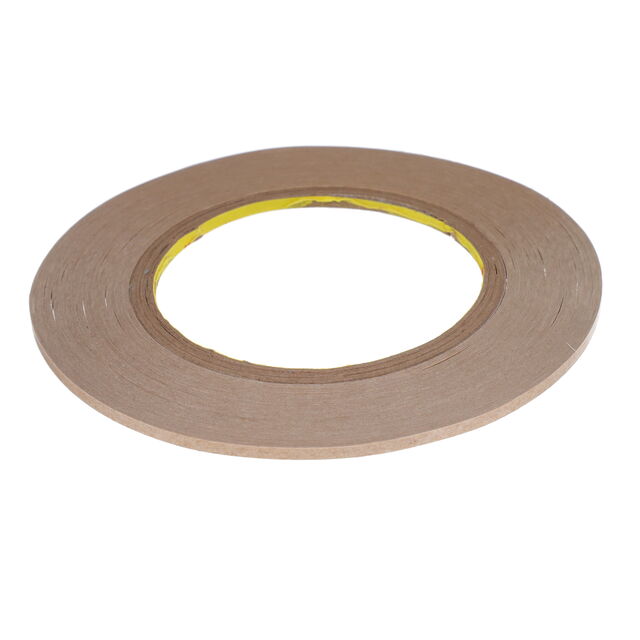

Specification	9626-0.125-60

Adhesive	Acrylic
Backing	Paper
Carrier	Paper
Color	Clear
Length (ft)	180 ft
Length (yd)	60 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Tape Type	Adhesive Transfer
Temperature Range (Max)	200 °F
Thickness	0.0052 in
Thickness - Adhesive	0.002 in
Thickness - Backing, Carrier	0.0032 in
Width	0.13 in

9626 Series

...

Part	Shelf Life	Shelf Life Start	Storage/Refrigeration Temperature	Temperature Range (Max)	Color	Tape Type	Carrier	Backing	Thickness - Backing, Carrier	Thickness	Width	Length (ft)	Length (yd)	Adhesive	Thickness - Adhesive	Length
3M (TC) 3M 9626 11" X 60YD	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	11 in	180 ft	60 yd	Acrylic	0.002 in
3M (TC) 3M 9626 2" X 10.5"-50	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	2 in			Acrylic	0.002 in	10.5 in
3M (TC) 3M 9626 8.625" X 1.25"-25	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	8.63 in			Acrylic	0.002 in	1.25 in
3M (TC) 3M 9626 2" X 5"-50	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	2 in			Acrylic	0.002 in	5 in
3M (TC) 8-5-9626	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	8 in	15 ft	5 yd	Acrylic	0.002 in
3M (TC) 3M 9626 4" X 6"-25	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	4 in			Acrylic	0.002 in	0.5 ft
3M (TC) 3M 9626 0.75" X 7"-100	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	0.75 in			Acrylic	0.002 in	7 in
3M (TC) 3M 9626 3" X 60YD	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	3 in	180 ft	60 yd	Acrylic	0.002 in
3M (TC) 3M 9626 CIRCLE-1.500"-100	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	1.5 in			Acrylic	0.002 in
3M (TC) 3M 9626 3" X 10.5"-50	24 Months	Date of Manufacture	70 °F	200 °F	Clear	Adhesive Transfer	Paper	Paper	0.0032 in	0.0052 in	3 in			Acrylic	0.002 in	10.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

9626-0.125-60 | Datasheet
