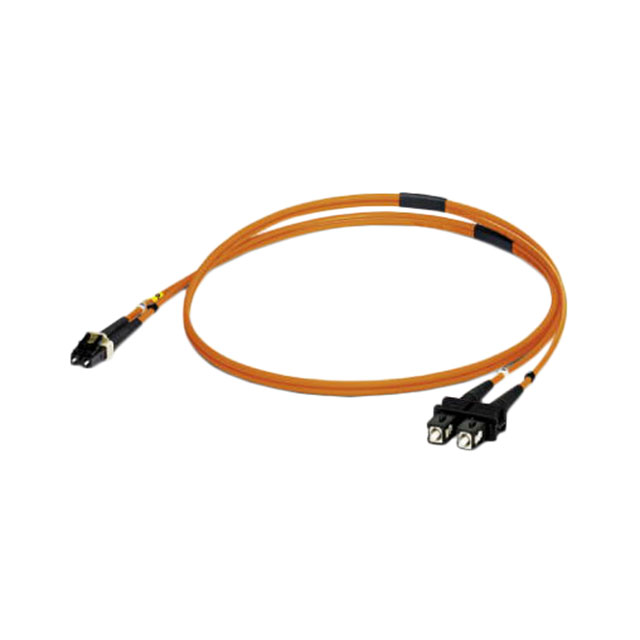

Specification	2901800

1st Connector	LC Duplex
2nd Connector	SC Duplex
Bend Radius	60 mm
Cable Diameter	0.22 "
Cable Type	Break, Out
Color - Cable	Orange
Color - Connectors	Black
Features	IP20
Fiber Cladding Diameter	125 µm
Fiber Core Diameter	50 µm
Jacket (Insulation) Material	Flame Retardant Non-Corrosive (FRNC)
Length - Overall	16.4 ft
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-5 °C
Type	OM2, Multimode, Duplex

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
