870-590/281-410
ActiveWAGO Corporation

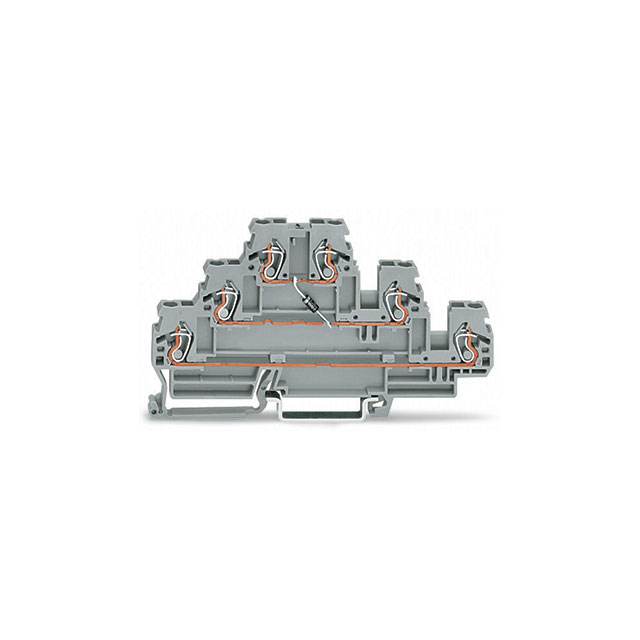

COMPONENT TERMINAL BLOCK; TRIPLE
870-590/281-410
ActiveWAGO Corporation
COMPONENT TERMINAL BLOCK; TRIPLE
Description
General part information
870-590/281-410
Terminal Block Connector 6 Position Feed Through Gray 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 870-590/281-410 |
|---|---|
| Color | Gray |
| Current - IEC | 0.5 A |
| Features | Diode |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3 |
| Number of Positions | 6 |
| Stripping Length (Max) | 7 mm |
| Stripping Length (Min) | 6 mm |
| Terminal Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
