R7FA2E1A92DFL#UA0

Active

Renesas Electronics Corporation

48MHZ ARM CORTEX-M23 ENTRY-LEVEL GENERAL-PURPOSE MICROCONTROLLER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RA2 Series

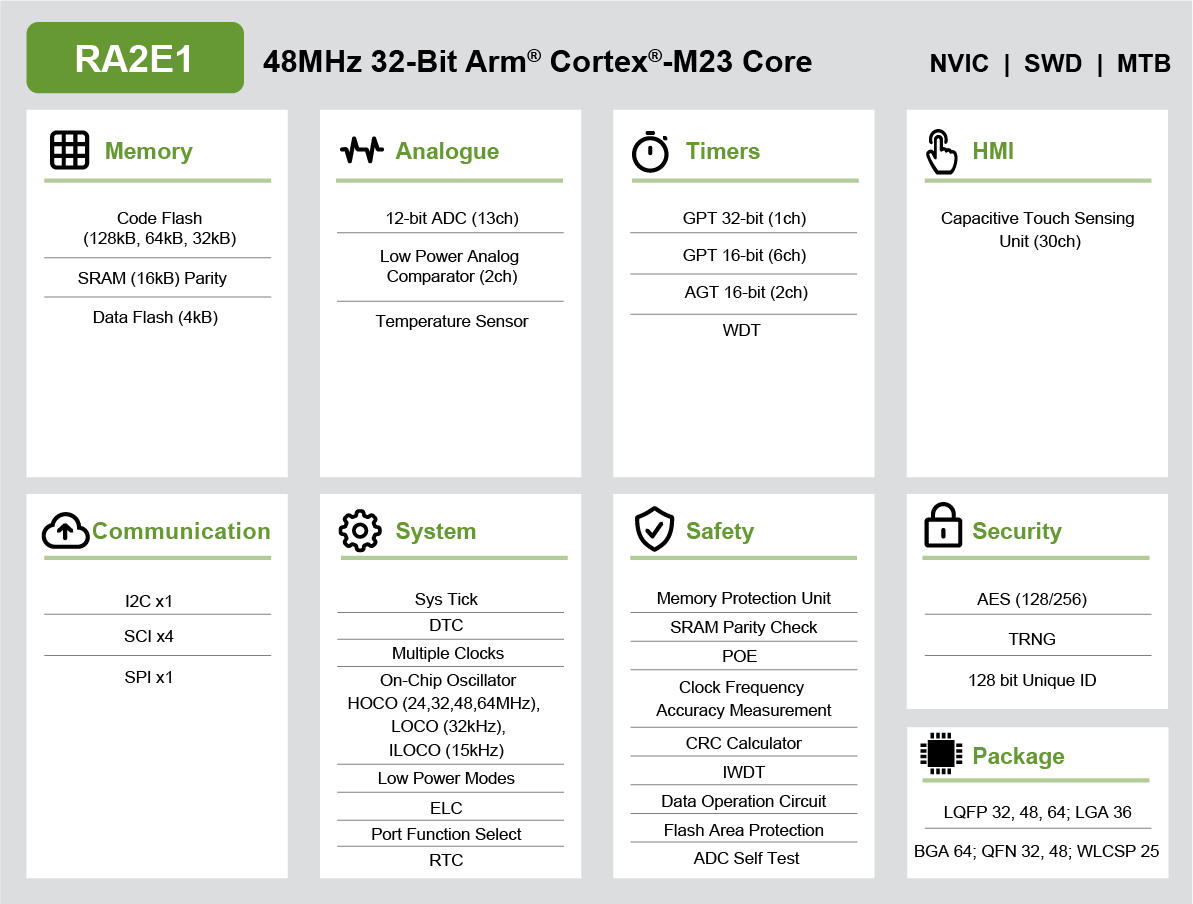

The RA2E1 group is the RA Family’s entry-level single-chip microcontroller based on the 48MHz Arm®Cortex®-M23 core and up to 128KB code flash and 16KB SRAM memory. The optimized processing and Renesas’ low power process technology make it the industry's most energy-efficient ultra-low power MCU. The RA2E1 group supports a wide operating voltage range of 1.6V to 5.5V and a large selection of packages such as LQFP, QFN, LGA, BGA, and WLCSP. The RA2E1 provides pin and peripheral compatibility with the RA2L1 group and is ideal for battery-operated applications and other systems requiring high performance and low-energy consumption in space-constrained applications.

Technical Specifications

Parameters and characteristics for this part

Specification	R7FA2E1A92DFL#UA0

A/D Channels	13 count
A/D Resolution (bits)	12 bit
Connectivity	SPI, UART, SmartCard, I2C, USART
Converter Architecture	SAR
Core Processor	ARM® Cortex®-M23
Core Size (Bit Width)	32 Bit
EEPROM Size (Depth)	4 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	37
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	48-LQFP
Package Length	7 mm
Package Name	48-LFQFP
Package Width	7 mm
Peripherals	POR, WDT, Temp Sensor, AES, LVD, TRNG, DMA, PWM
Program Memory Depth (128KB)	128 K
Program Memory Size	128KB
Program Memory Type	FLASH
Program Memory Width (128KB)	8
RAM Size Depth	16 K
RAM Size Width	8 bit
Speed	48 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	1.6 V

RA2 Series

...

Part	Package / Case	Package Width	Package Name	Package Length	Speed	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Type	EEPROM Size (Depth)	EEPROM Size (Width)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Connectivity	Peripherals	Core Processor	Oscillator Type	A/D Resolution (bits)	Converter Architecture	A/D Channels	Number of I/O	Core Size (Bit Width)	Program Memory Depth	Program Memory Width	Program Memory Size	Mounting Type	RAM Size Width	RAM Size Depth
Renesas Electronics Corporation R7FA2E3073CNH#HA0	32-WFQFN Exposed Pad	5 mm	32-HWQFN	5 mm	48 MHz	105 °C	-40 °C	FLASH	2 K	8 bit	5.5 V	1.6 V	I2C SCI SPI UART USART	DMA LVD POR PWM WDT	ARM® Cortex®-M23	Internal	12 bit	SAR	10 count	23	32 Bit	64 K	8 bit	64 KB	Surface Mount	8 bit	16 K
Renesas Electronics Corporation R7FA2E3073CNH#BA0	32-WFQFN Exposed Pad	5 mm	32-HWQFN	5 mm	48 MHz	105 °C	-40 °C	FLASH	2 K	8 bit	5.5 V	1.6 V	I2C SCI SPI UART USART	DMA LVD POR PWM WDT	ARM® Cortex®-M23	Internal	12 bit	SAR	10 count	23	32 Bit	64 K	8 bit	64 KB	Surface Mount	8 bit	16 K
Renesas Electronics Corporation R7FA2E3073CNH#AA0	32-WFQFN Exposed Pad	5 mm	32-HWQFN	5 mm	48 MHz	105 °C	-40 °C	FLASH	2 K	8 bit	5.5 V	1.6 V	I2C SCI SPI UART USART	DMA LVD POR PWM WDT	ARM® Cortex®-M23	Internal	12 bit	SAR	10 count	23	32 Bit	64 K	8 bit	64 KB	Surface Mount	8 bit	16 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RA2E1 Group Datasheet
