966210-2000-AR-PR

Active

3M (TC)

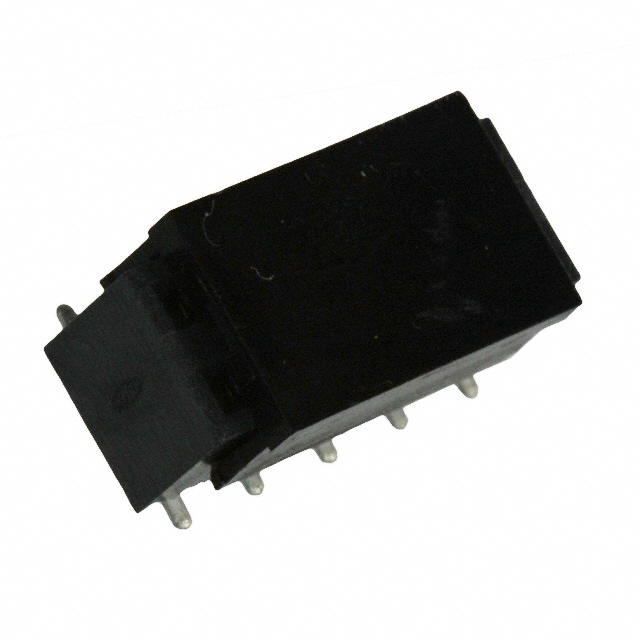

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT, 96X SERIES

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT, 96X SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	966210-2000-AR-PR

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1000 VDC

Part	Contact Finish Thickness - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions	Mounting Type	Connector Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Contact Type	Number of Positions Loaded	Contact Shape	Termination	Contact Material	Insulation Material	Fastening Type	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height
3M (TC) 966210-2000-AR-PT	Flash	Black	1.02 Ám	40 Áin	2	10	Surface Mount	Receptacle Bottom or Top Entry	UL94 V-0	2.54 mm	0.1 in	Gold	1000 VDC	2 A	Female Socket	All	Square	Solder	Copper Alloy	Thermoplastic	Push-Pull	Pick and Place	Tin	0.1 in	2.54 mm	-25 °C	105 ░C	0.197 in	5 mm
3M (TC) 966210-2000-AR-PR	Flash	Black	1.02 Ám	40 Áin	2	10	Surface Mount	Receptacle Bottom or Top Entry	UL94 V-0	2.54 mm	0.1 in	Gold	1000 VDC	2 A	Female Socket	All	Square	Solder	Copper Alloy	Thermoplastic	Push-Pull	Pick and Place	Tin	0.1 in	2.54 mm	-25 °C	105 ░C	0.197 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
