W3538M0150
ObsoletePulse Electronics
RF ANT 892MHZ/1.9GHZ PCB 150MM
W3538M0150
ObsoletePulse Electronics
RF ANT 892MHZ/1.9GHZ PCB 150MM
Description
General part information
W3538M0150

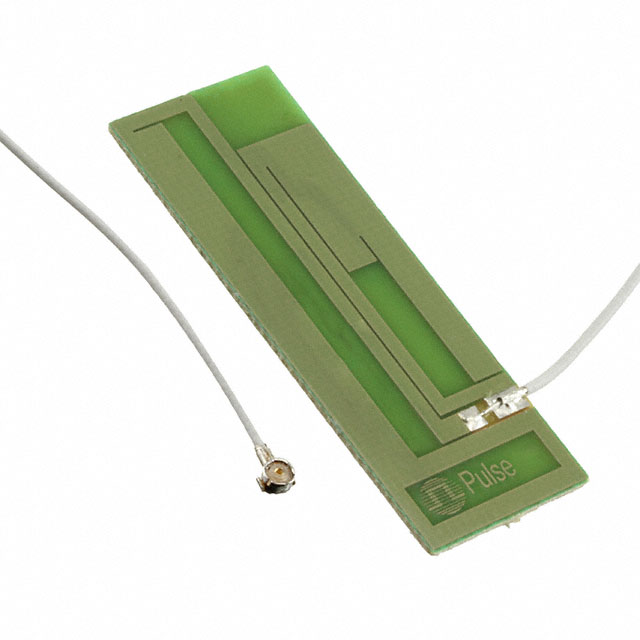

RF ANTENNA GSM, WCDMA PCB Trace U.FL (UMCC), I-PEX MHF1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | W3538M0150 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | WCDMA, GSM |
| Frequency (Band) | 1.9 GHz |
| Frequency (Center) | 892 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz, 1 GHz |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 1.5 dBi, 3.9 dBi, 4.5 dBi |
| Height (Max) | 0.028 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Return Loss | -3dB, -6dB |
| Return Loss | -6 dB, -3 dB |
| RF Family/Standard | Cellular |
| Termination Type | U.FL, I-PEX MHF1 |
