Description
General part information

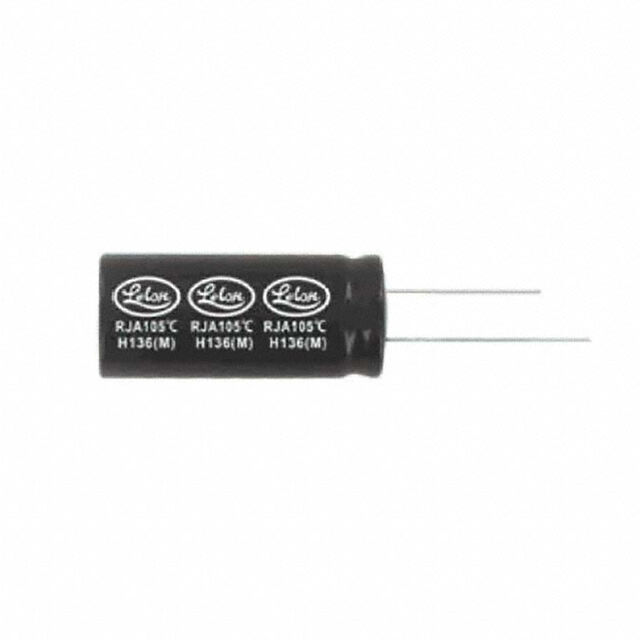

RJA100M1HBK-0511S
Aluminum Electrolytic Capacitors
Technical Specifications
Parameters and characteristics for this part
| Specification | RJA100M1HBK-0511S |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.079 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 50 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
