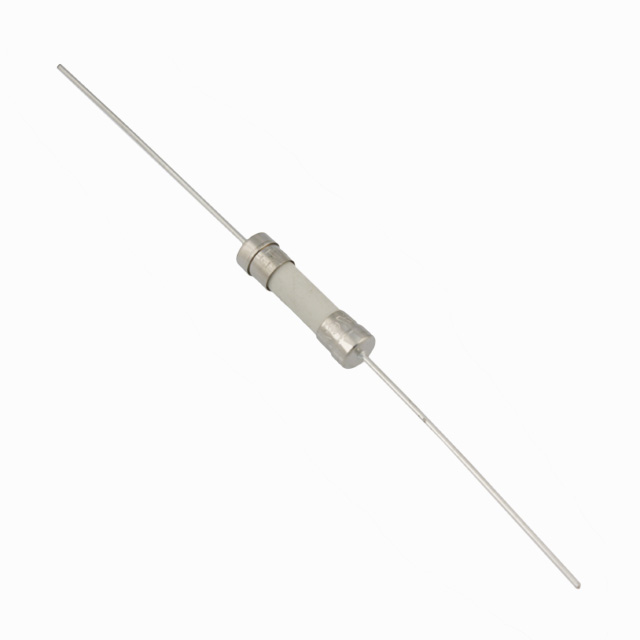

0215.800MXE
ObsoleteLITTELFUSE
FUSE CERAMIC 800MA 250VAC 5X20MM
0215.800MXE
ObsoleteLITTELFUSE
FUSE CERAMIC 800MA 250VAC 5X20MM
Description
General part information
0215.800MXE
800 mA 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0215.800MXE |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 1.5 kA |
| Current Rating | 800 mA |
| DC Cold Resistance | 0.436 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 0.954 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case Interfaces | Axial |
| Package Features | Axial |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Name | 5mm x 20mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 0.886 in |
| Voltage Rating - AC | 250 V |
