1120 CL001
ActiveALPHA WIRE

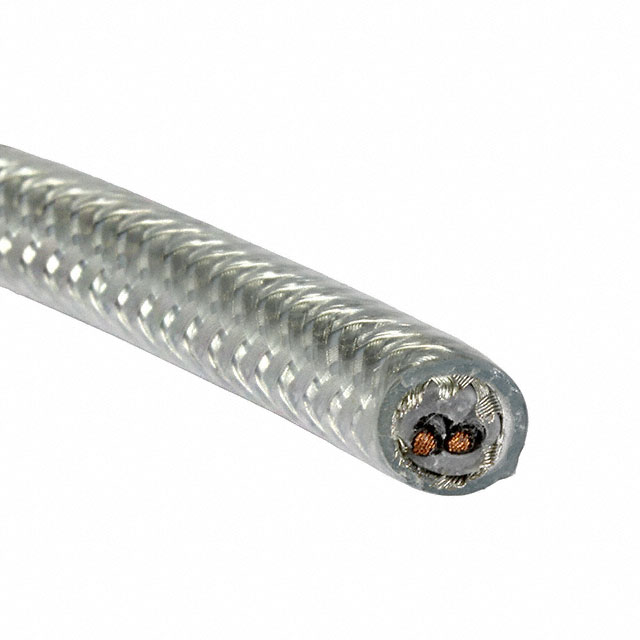

CABLE 2COND 28AWG CLEAR 1000'
Deep-Dive with AI
Search across all available documentation for this part.
1120 CL001
ActiveALPHA WIRE
CABLE 2COND 28AWG CLEAR 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1120 CL001 | 1120 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 36 AWG | 36 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Jacket (Insulation) Diameter [diameter] | 0.115 in | 0.115 in |
| Jacket (Insulation) Diameter [diameter] | 2.92 mm | 2.92 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Clear | Clear |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 30.5 m |
| Length | - | 100 ft |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Usage | Control, Communication | Control, Communication |
| Voltage | 200 V | 200 V |
| Wire Gauge | 28 AWG | 28 AWG |
1120 Series
CABLE 2COND 28AWG CLEAR 100'
| Part | Jacket Color | Conductor Insulation | Conductor Material | Length [x] | Length [x] | Cable Type | Jacket (Insulation) Material | Usage | Wire Gauge | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1120 CL005 | Clear | Poly-Vinyl Chloride (PVC) | Copper, Tinned | 30.5 m | 100 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Communication, Control | 28 AWG | 200 V | 36 AWG | 7 | 0.115 in | 2.92 mm | 2 | -20 C | 80 C | ||
ALPHA WIRE 1120 CL001 | Clear | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Communication, Control | 28 AWG | 200 V | 36 AWG | 7 | 0.115 in | 2.92 mm | 2 | -20 C | 80 C | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 2190.98 | |
Description
General part information
1120 Series
2 Conductor Multi-Conductor Cable Clear 28 AWG 1000.0' (304.8m)
Documents
Technical documentation and resources
