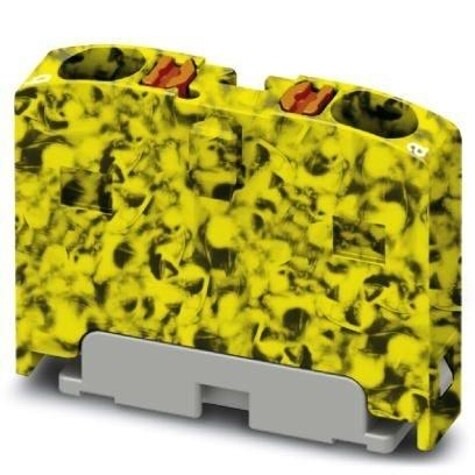

Specification	1045933

Current - IEC	17.5 A
Current - UL	20 A
Housing Color	Yellow, Black
Mounting Type	Direct Mount
Number of Levels	1
Number of Positions	2
Terminal Width	4.2 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	450 V
Voltage - UL	500 V
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	2.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.14 mm²
