CQ-SS-SNBIAG-0.20MM-25000
ActiveChip Quik Inc.
SOLDER SOLDER SPHERES SN42/BI57.6/AG0.4 0.20MM DIAMETER 25K BOTTLE
CQ-SS-SNBIAG-0.20MM-25000
ActiveChip Quik Inc.
SOLDER SOLDER SPHERES SN42/BI57.6/AG0.4 0.20MM DIAMETER 25K BOTTLE
Description
General part information
CQ-SS-SNBIAG-0.20MM-25000

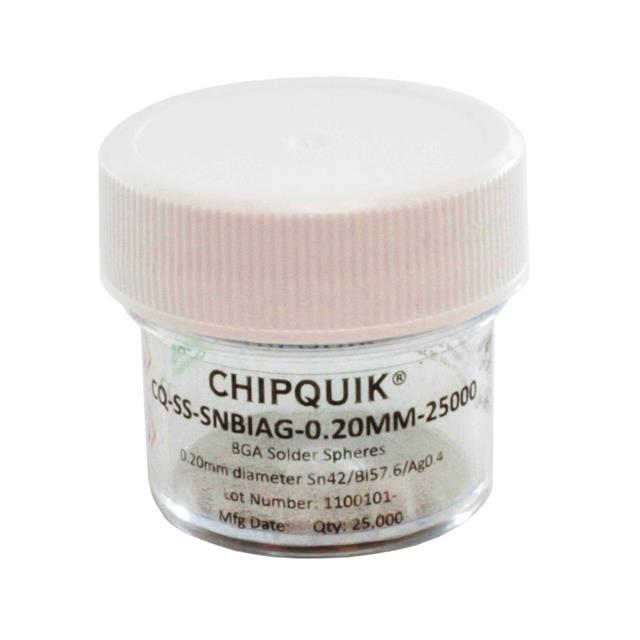

Solder Sphere Bi57.6Sn42Ag0.4 (57.6/42/0.4) Jar
Technical Specifications
Parameters and characteristics for this part
| Specification | CQ-SS-SNBIAG-0.20MM-25000 |
|---|---|
| Ag Composition | 0.4 % |
| Bi Composition | 57.6 % |
| Composition Elements | Sn, Ag, Bi |
| Composition Formula | Bi57.6Sn42Ag0.4 |
| Diameter | 0.008 in |
| Form | Jar |
| Melting Point | 280 °F |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Sn Composition | 42 % |
| Type | Solder Sphere |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
