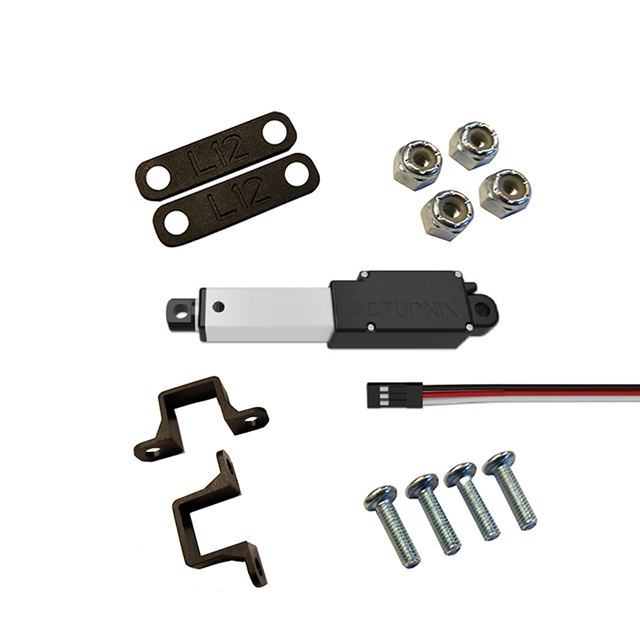

L12-30-210-6-R

Active

Actuonix Motion Devices Inc

L12 -R MICRO LINEAR SERVO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L12-30-210-6-R

Active

Actuonix Motion Devices Inc

L12 -R MICRO LINEAR SERVO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L12-30-210-6-R	L12-30 Series

Accuracy	0.2 mm	0.2 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	RC Linear Servo	Integrated Controller, Limit Switches, RC Linear Servo
Feedback Type	-	Potentiometer
Gear Reduction Ratio	210	50 - 210
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	17.99 lbf	9.44 - 17.99 lbf
Load Force (Dynamic)	80 N	42 - 80 N
Load Force (Static)	200 N	200 N
Load Force (Static)	44.96 lbf	44.96 lbf
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	0.26 in/s	0.26 - 0.98 in/s
Speed	6.6 mm/s	6.6 - 25 mm/s
Stroke Length	1.181 in	1.181 in
Stroke Length	30 mm	30 mm
Type	Linear Actuator	Linear Actuator
Voltage - Rated	6 VDC	6 - 12 VDC

L12-30 Series

L12-P MICRO LINEAR ACTUATOR

Part	Accuracy	Motor Type	Type	Gear Reduction Ratio	Feedback Type	Load Force (Dynamic)	Load Force (Dynamic)	Load Force (Static)	Load Force (Static)	Ingress Protection	Speed	Speed	Stroke Length	Stroke Length	Voltage - Rated	Construction	Duty Cycle	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features
Actuonix Motion Devices Inc L12-30-210-12-P	0.2 mm	Brushed	Linear Actuator	210	Potentiometer	17.99 lbf	80 N	200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.26 in/s	6.6 mm/s	1.181 in	30 mm	12 VDC	Ball Screw	20 %	-10 °C	50 °C
Actuonix Motion Devices Inc L12-30-100-12-P	0.2 mm	Brushed	Linear Actuator	100	Potentiometer	9.44 lbf	42 N	200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant			1.181 in	30 mm	12 VDC	Ball Screw	20 %	-10 °C	50 °C
Actuonix Motion Devices Inc L12-30-100-12-I	0.2 mm	Brushed	Linear Actuator	100	Potentiometer	9.44 lbf	42 N	200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant			1.181 in	30 mm	12 VDC	Ball Screw	20 %	-10 °C	50 °C	Integrated Controller
Actuonix Motion Devices Inc L12-30-50-12-P	0.2 mm	Brushed	Linear Actuator	50	Potentiometer			200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.98 in/s	25 mm/s	1.181 in	30 mm	12 VDC	Ball Screw	20 %	-10 °C	50 °C
Actuonix Motion Devices Inc L12-30-50-6-S	0.2 mm	Brushed	Linear Actuator	50				200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.98 in/s	25 mm/s	1.181 in	30 mm	6 VDC	Ball Screw	20 %	-10 °C	50 °C	Limit Switches
Actuonix Motion Devices Inc L12-30-50-12-S	0.2 mm	Brushed	Linear Actuator	50				200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.98 in/s	25 mm/s	1.181 in	30 mm	12 VDC	Ball Screw	20 %	-10 °C	50 °C	Limit Switches
Actuonix Motion Devices Inc L12-30-50-6-R	0.2 mm	Brushed	Linear Actuator	50				200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.98 in/s	25 mm/s	1.181 in	30 mm	6 VDC	Ball Screw	20 %	-10 °C	50 °C	Integrated Controller
Actuonix Motion Devices Inc L12-30-210-6-S	0.2 mm	Brushed	Linear Actuator	210		17.99 lbf	80 N	200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.26 in/s	6.6 mm/s	1.181 in	30 mm	6 VDC	Ball Screw	20 %	-10 °C	50 °C	Limit Switches
Actuonix Motion Devices Inc L12-30-210-6-P	0.2 mm	Brushed	Linear Actuator	210	Potentiometer	17.99 lbf	80 N	200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.26 in/s	6.6 mm/s	1.181 in	30 mm	6 VDC	Ball Screw	20 %	-10 °C	50 °C
Actuonix Motion Devices Inc L12-30-50-6-I	0.2 mm	Brushed	Linear Actuator	50	Potentiometer			200 N	44.96 lbf	IP54 - Dust Protected, Water Resistant	0.98 in/s	25 mm/s	1.181 in	30 mm	6 VDC	Ball Screw	20 %	-10 °C	50 °C	Integrated Controller

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

L12-30 Series

L12 -R MICRO LINEAR SERVO

Documents

Technical documentation and resources
