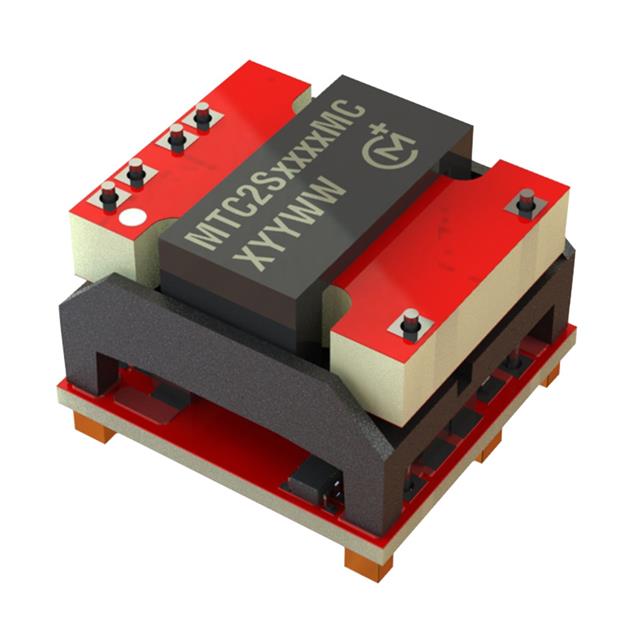

MTC2S2412MC-R7
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 2:1, 2 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTC2S2412MC-R7
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 2:1, 2 W, 1 OUTPUT, 12 V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MTC2S2412MC-R7 | MTC2S24 Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 167 mA | 167 - 400 mA |
| Efficiency | 81.5 % | 79.5 - 81.5 % |
| Features | Remote On/Off, SCP | Remote On/Off, SCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-SMD Module | 6-SMD Module |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 0.59 in | 0.59 in |
| Size / Dimension [x] | 15 mm | 15 mm |
| Size / Dimension [y] | 14.2 mm | 14.2 mm |
| Size / Dimension [y] | 0.56 in | 0.56 in |
| Size / Dimension [z] | 11.2 mm | 11.2 mm |
| Size / Dimension [z] | 0.44 " | 0.44 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 12 V | 5 - 12 V |
MTC2S24 Series
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 2:1, 2 W, 1 OUTPUT, 12 V, 167 MA
| Part | Applications | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Features | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Package / Case | Efficiency | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Number of Outputs | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MTC2S2412MC-R13 | ITE (Commercial), Medical | 12 V | 0.59 in | 14.2 mm | 11.2 mm | 0.56 in | 15 mm | 0.44 " | Surface Mount | Remote On/Off, SCP | 2 W | 18 V | 36 V | 6-SMD Module | 81.5 % | Isolated Module | -40 °C | 105 ░C | 3000 V | 1 | 167 mA |
Murata Power Solutions Inc. MTC2S2412MC-R7 | ITE (Commercial), Medical | 12 V | 0.59 in | 14.2 mm | 11.2 mm | 0.56 in | 15 mm | 0.44 " | Surface Mount | Remote On/Off, SCP | 2 W | 18 V | 36 V | 6-SMD Module | 81.5 % | Isolated Module | -40 °C | 105 ░C | 3000 V | 1 | 167 mA |
Murata Power Solutions Inc. MTC2S2405MC-R13 | ITE (Commercial), Medical | 5 V | 0.59 in | 14.2 mm | 11.2 mm | 0.56 in | 15 mm | 0.44 " | Surface Mount | Remote On/Off, SCP | 2 W | 18 V | 36 V | 6-SMD Module | 79.5 % | Isolated Module | -40 °C | 105 ░C | 3000 V | 1 | 400 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MTC2S24 Series
Isolated Module DC DC Converter 1 Output 12V 167mA 18V - 36V Input
