1-1437021-2
ActiveTE Connectivity AMP Connectors

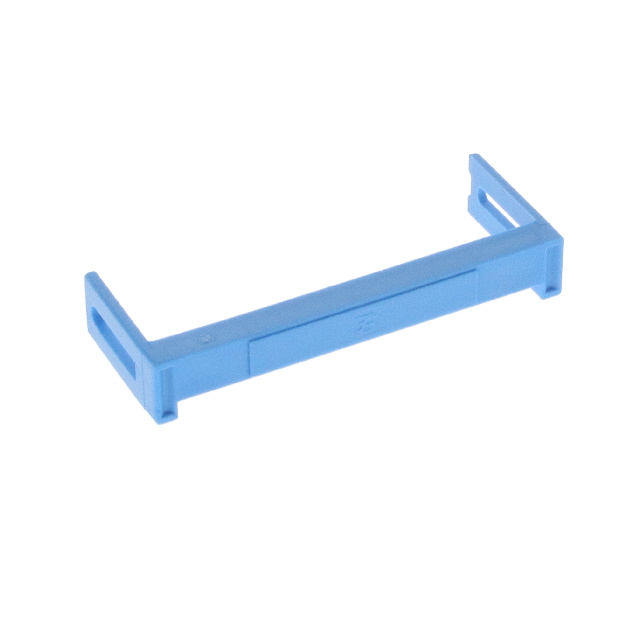

CONN STRAIN RELIEF 26POS BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1437021-2
ActiveTE Connectivity AMP Connectors
CONN STRAIN RELIEF 26POS BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1437021-2 | 1437021 Series |
|---|---|---|
| Accessory Type | Strain Relief | Strain Relief |
| Cable Termination | - | IDC |
| Color | - | Blue |
| Connector Type | - | Receptacle |
| Contact Finish | - | Gold |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Type | - | Female Socket |
| Features | - | Polarizing Key, Strain Relief |
| For Use With/Related Products | AMP-LATCH Series | AMP-LATCH Series |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Positions | 26 | 26 - 50 |
| Number of Rows | - | 2 |
| Pitch | - | 2.54 mm |
| Pitch | - | 0.1 in |
| Row Spacing | - | 0.1 in |
| Row Spacing | - | 2.54 mm |
| Wire Gauge | - | 28 AWG |
| Wire Gauge | - | 30 AWG |
| Wire Gauge | - | 27.5 AWG |
| Wire Type | - | Ribbon Cable, Discrete or Ribbon Cable |
1437021 Series
CONN STRAIN RELIEF 26POS BLUE
| Part | For Use With/Related Products | Accessory Type | Number of Positions | Wire Type | Number of Rows | Row Spacing [x] | Row Spacing | Color | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Pitch [x] | Pitch [x] | Cable Termination | Features | Connector Type | Contact Type | Wire Gauge | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1437021-2 | AMP-LATCH Series | Strain Relief | 26 | ||||||||||||||||||
TE Connectivity AMP Connectors 1-1437021-0 | AMP-LATCH Series | Strain Relief | 26 | ||||||||||||||||||
TE Connectivity AMP Connectors 3-1437021-4 | 34 | Ribbon Cable | 2 | 0.1 in | 2.54 mm | Blue | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Gold | 2.54 mm | 0.1 in | IDC | Polarizing Key, Strain Relief | Receptacle | Female Socket | |||||
TE Connectivity AMP Connectors 5-1437021-5 | AMP-LATCH Series | Strain Relief | 40 | ||||||||||||||||||
TE Connectivity AMP Connectors 7-1437021-9 | AMP-LATCH Series | Strain Relief | 50 | ||||||||||||||||||
TE Connectivity AMP Connectors 2-1437021-6 | 34 | Discrete or Ribbon Cable | 2 | 0.1 in | 2.54 mm | Blue | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Gold | 2.54 mm | 0.1 in | IDC | Receptacle | Female Socket | 28 AWG | |||||
TE Connectivity AMP Connectors 1437021-5 | 26 | Discrete or Ribbon Cable | 2 | 0.1 in | 2.54 mm | Blue | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Gold | 2.54 mm | 0.1 in | IDC | Receptacle | Female Socket | 30 AWG | 27.5 AWG | ||||
TE Connectivity AMP Connectors 3-1437021-2 | AMP-LATCH Series | Strain Relief | 34 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.81 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.62 | |||
Description
General part information
1437021 Series
Connector Strain Relief For AMP-LATCH Series
