16280-3SG-315
ActiveConxall/Switchcraft

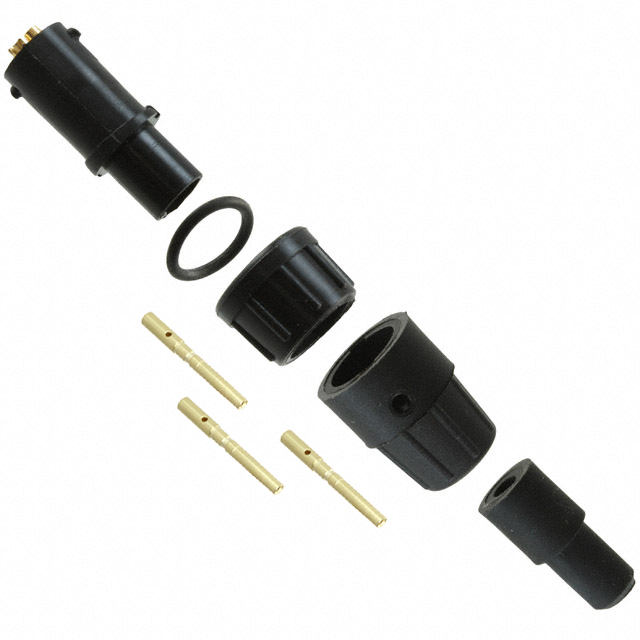

CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16280-3SG-315
ActiveConxall/Switchcraft
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 16280-3SG-315 | 16280-3S Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
16280-3S Series
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Color | Voltage Rating | Features | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Material Flammability Rating | Connector Type | Backshell Material, Plating | Current Rating (Amps) | Termination | Mounting Type | Fastening Type | Orientation | Contact Finish - Mating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Applications | Primary Material | Contact Material | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 16280-3SG-311 | Black | 600 VAC | Backshell | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | UL94 HB | Female Sockets, Plug | Thermoplastic | 7.5 A | Crimp | Free Hanging (In-Line) | Bayonet Lock | Keyed | Gold | Unshielded | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Data, Industrial, Instrumentation, Medical | Plastic | Copper Alloy | ||||||
Conxall/Switchcraft 16280-3SG-318 | Black | 600 VAC | Backshell | UL94 HB | Female Sockets, Plug | Thermoplastic | 7.5 A | Crimp | Free Hanging (In-Line) | Bayonet Lock | Keyed | Gold | Unshielded | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Data, Industrial, Instrumentation, Medical | Plastic | Copper Alloy | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||
Conxall/Switchcraft 16280-3SG-315 | Black | 600 VAC | Backshell | UL94 HB | Female Sockets, Plug | Thermoplastic | 7.5 A | Crimp | Free Hanging (In-Line) | Bayonet Lock | Keyed | Gold | Unshielded | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Data, Industrial, Instrumentation, Medical | Plastic | Copper Alloy | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.50 | |
| 10 | $ 7.65 | |||
| 25 | $ 7.21 | |||
| 50 | $ 7.02 | |||
| 100 | $ 6.84 | |||
| 300 | $ 6.10 | |||
| 500 | $ 5.73 | |||
| 1000 | $ 5.06 | |||
Description
General part information
16280-3S Series
3 Position Circular Connector Plug, Female Sockets Crimp
