PA2982.151HLT
ActivePulse Electronics
FIXED IND 150NH 50A 0.35MOHM SMD
PA2982.151HLT
ActivePulse Electronics
FIXED IND 150NH 50A 0.35MOHM SMD
Description
General part information
PA2982.151HLT

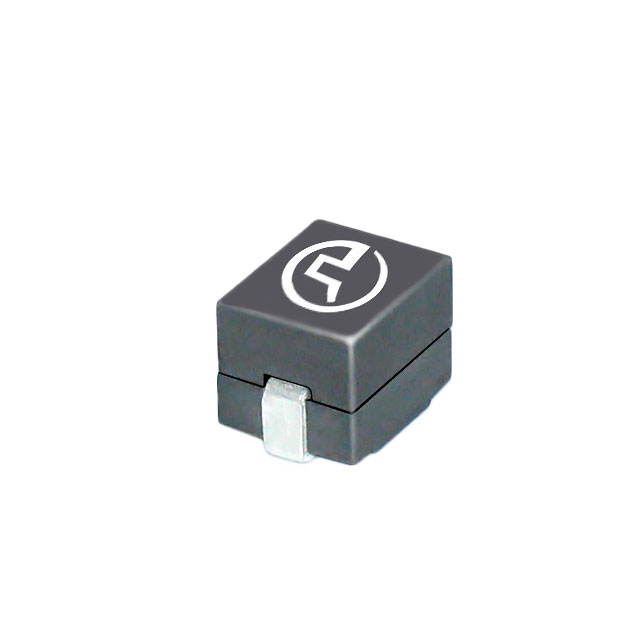

150 nH Shielded Inductor 50 A 0.35mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA2982.151HLT |
|---|---|
| Current - Saturation (Isat) | 64 A |
| Current Rating | 50 A |
| DC Resistance (DCR) | 0.35 mOhm |
| Height - Seated (Max) | 0.201 in |
| Inductance | 150 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.433 in |
| Size / Dimension Width | 0.315 in |
| Tolerance | 10 % |
