Description
General part information
PZACF2BXD12101

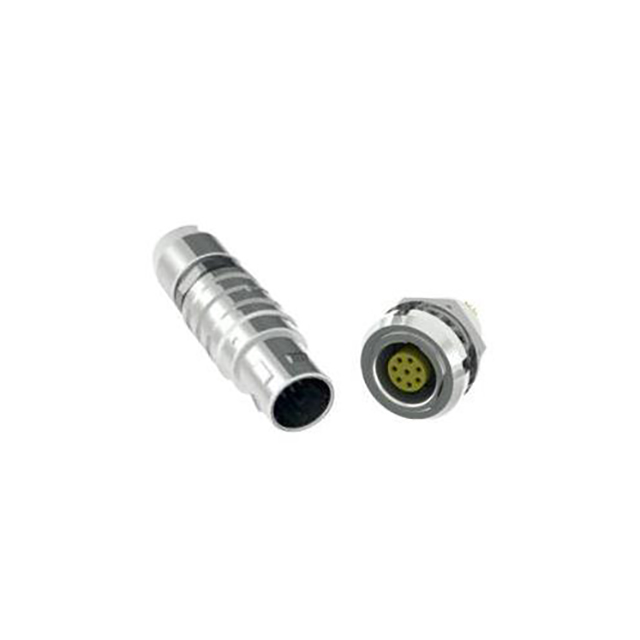

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PZACF2BXD12101 |
|---|---|
| Applications | Industrial, Military |
| Cable Opening (Max) | 0.39 in |
| Cable Opening (Min) | 0.055 in |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 25 A |
| Fastening Type | Push-Pull |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 10 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-10 |
| Shielding | Unshielded |
| Termination | Solder Cup |
