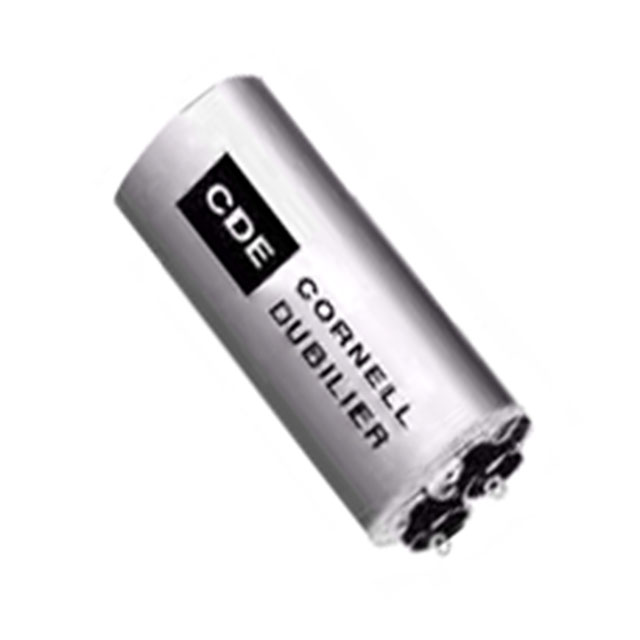

SNU202K254R-F
ActiveCornell Dubilier Knowles
CAP FILM 0.25UF 10% 2KVPK RADIAL
SNU202K254R-F
ActiveCornell Dubilier Knowles
CAP FILM 0.25UF 10% 2KVPK RADIAL
Description
General part information
SNU202K254R-F
0.25 µF Film Capacitor 2000Vpk (2KVPK) Paper, Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | SNU202K254R-F |
|---|---|
| Applications | High Pulse, DV/DT, Snubber |
| Capacitance | 0.25 µF |
| Dielectric Material | Metallized, Paper |
| Height - Seated (Max) | 2.134 in |
| Lead Spacing | 0.81 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 2.1 in |
| Size / Dimension Width | 1.81 in |
| Termination | Solder Lug |
| Tolerance | 10 % |
| Voltage Rating - AC | 2 kVAC |
