262-138
ActiveWAGO Corporation

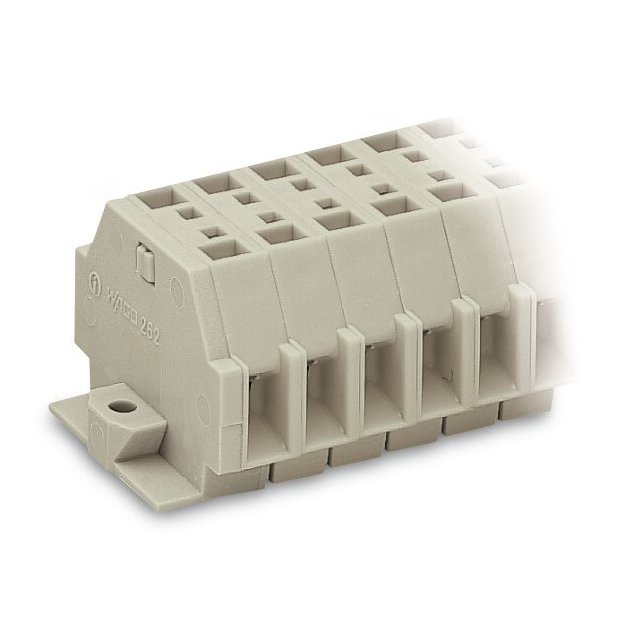

2-CONDUCTOR TERMINAL STRIP; SUIT
262-138
ActiveWAGO Corporation
2-CONDUCTOR TERMINAL STRIP; SUIT
Description
General part information
262-138
16 Position Terminal Block Gray Middle 70.4mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 262-138 |
|---|---|
| Height (Max) | 0.909 in |
| Housing Color | Gray |
| Length | 1.319 in |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 16 |
| Stripping Length (Max) | 10 mm |
| Stripping Length (Min) | 9 mm |
| Terminal Width | 70.4 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Wire Gauge or Range - AWG (Max) | 20 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
