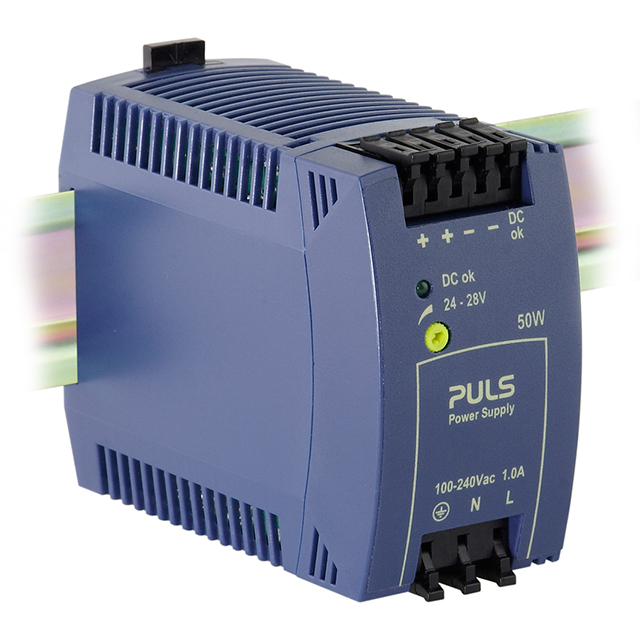

ML50.100

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ML50.100

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ML50.100	ML50 Series

AC Voltage - Input [Max]	264 VAC	240 - 264 VAC
AC Voltage - Input [Min]	85 VAC	85 - 100 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC, CSA, UL, NEC, SEMI, EAC, ABS, DNV GL	IEC, CSA, UL, NEC, SEMI, EAC, ABS, DNV GL
Current - Output (Max) [Max]	2.1 A	1.05 - 4.2 A
Efficiency	89 %	88.5 - 90.3 %
Features	Universal Input, Adjustable Output, Load Sharing	Universal Input, Adjustable Output, Load Sharing, Conformal Coating
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	-10 - 0 °C
Power (Watts)	50 W	50 W
Size / Dimension [x]	3.58 in	3.58 in
Size / Dimension [x]	91 mm	91 mm
Size / Dimension [y]	1.77 "	1.77 "
Size / Dimension [y]	45 mm	45 mm
Size / Dimension [z]	2.95 "	2.95 "
Size / Dimension [z]	75 mm	75 mm
Standard Number	F47, 60601, 60950-1, 61010-2-201, Class I Div 2, Class 2, 508	F47, 60601, 60950-1, 61010-2-201, Class I Div 2, Class 2, 508
Standard Number	-	508 - 61010.201
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	12 - 48 V

ML50 Series

AC/DC DIN RAIL SUPPLY 24V 50W

Part	Current - Output (Max) [Max]	Power (Watts)	Voltage - Isolation	Standard Number	Voltage - Output 1	Approval Agency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Efficiency	Input Type	Features	Standard Number
PULS, LP ML50.100	2.1 A	50 W	500 V	508, 60601, 60950-1, 61010-2-201, Class 2, Class I Div 2, F47	24 V	ABS, CSA, DNV GL, EAC, IEC, NEC, SEMI, UL	ITE (Commercial)	70 °C	0 °C	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	1	89 %	AC	Adjustable Output, Load Sharing, Universal Input
PULS, LP ML50.101	2.1 A	50 W	500 V		24 V	CSA, EAC, IEC, NEC, UL	ITE (Commercial)	70 °C	-10 °C	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	1	88.5 %	AC	Adjustable Output, Load Sharing, Universal Input
PULS, LP ML50.111	2.1 A	50 W			24 V	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	ITE (Commercial)	70 °C	-10 °C	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	1	88.5 %	AC	Adjustable Output, Load Sharing, Universal Input
PULS, LP ML50.102	4.2 A	50 W			12 V	CSA, EAC, IEC, NEC, UL	ITE (Commercial)	70 °C	0 °C	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	1	90 %	AC	Adjustable Output, Load Sharing, Universal Input
PULS, LP ML50.105	1.05 A	50 W		Class 2	48 V	EAC, IEC, NEC, UL	ITE (Commercial)	70 °C	0 °C	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	1	90.3 %	AC	Adjustable Output, Load Sharing, Universal Input	508, 60950.1, 61010.201
PULS, LP ML50.109	2.1 A	50 W		508, 60950-1, 61010-2-201, Class 2, Class I Div 2, F47	24 V		ITE (Commercial)			100 VAC	240 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	1	89 %	AC	Adjustable Output, Conformal Coating, Load Sharing, Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 147.60

Description

General part information

ML50 Series

AC/DC DIN RAIL SUPPLY 24V 50W

Documents

Technical documentation and resources
