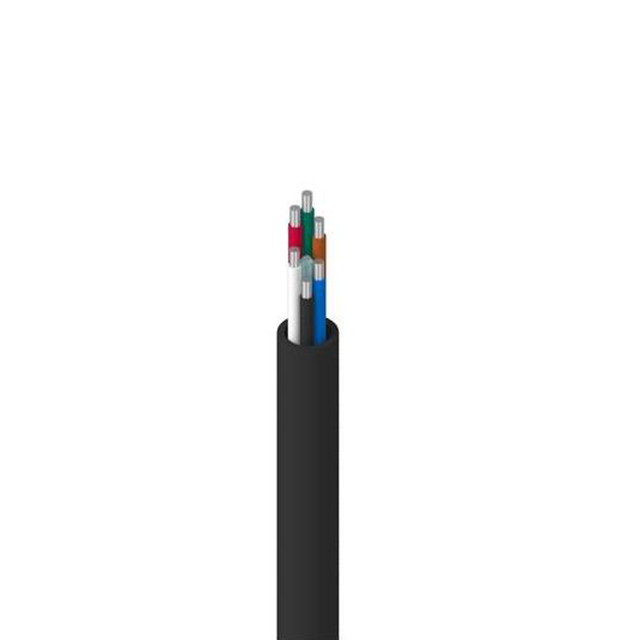

9576 010U1000

Active

Belden Inc.

CABLE 6COND 22AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 22AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	9576 010U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	5.94 mm
Jacket (Insulation) Diameter [diameter]	0.234 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.039 in
Jacket (Insulation) Thickness	0.991 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2464
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Jacket Color	Conductor Strand	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Ratings	Conductor Material
Belden Inc. 9576 010U1000	5.94 mm	0.234 "	Alarm Safety	300 V	-40 °C	105 ░C	6	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Black	Solid	1000 ft	304.8 m	0.039 in	0.991 mm	22 AWG	UL Style 2464	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.36

General part information

6 Conductor Multi-Conductor Cable Black 22 AWG 1000.0' (304.8m)
