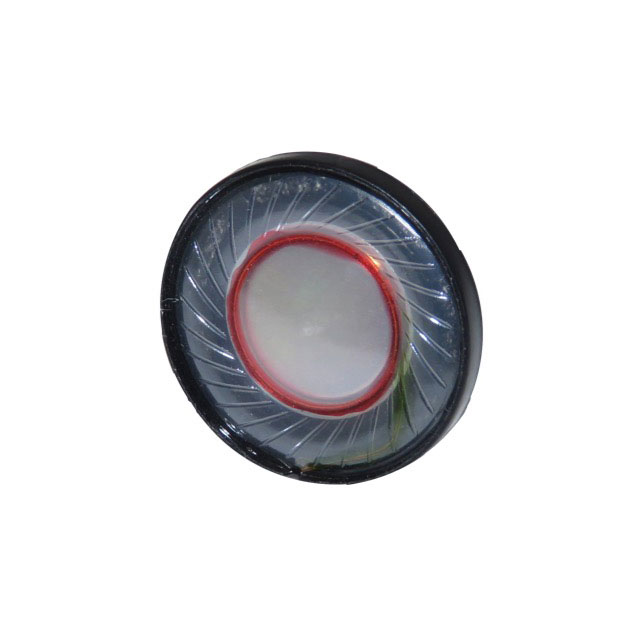

SW230704-1
ActiveDB Unlimited
SPEAKER 4OHM 1W TOP PORT 90DB
SW230704-1
ActiveDB Unlimited
SPEAKER 4OHM 1W TOP PORT 90DB
Description
General part information
SW230704-1
4 Ohms General Purpose Speaker 1 W 700 Hz ~ 10 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | SW230704-1 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing (Length) | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 700 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 700 Hz |
| Height - Seated (Max) | 0.157 in |
| Impedance | 4 Ohms |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 1.5 W |
| Power - Rated | 1 VA |
| Shape | Round |
| Size / Dimension Diameter | 0.906 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
