16280-2PG-315

Active

Conxall/Switchcraft

CONN PLUG MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	16280-2PG-315

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN PLUG MALE 2POS GOLD CRIMP

Part	Backshell Material, Plating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shielding	Material Flammability Rating	Fastening Type	Termination	Voltage Rating	Applications	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Features	Mounting Type	Contact Finish - Mating	Orientation	Ingress Protection	Contact Material	Color
Conxall/Switchcraft 16280-2PG-315	Thermoplastic	Male Pins, Plug	85 °C	-40 °C	2	Unshielded	UL94 HB	Bayonet Lock	Crimp	600 VAC	Data, Industrial, Instrumentation, Medical	Plastic	0.15 in, 0.17 in	3.81 mm, 4.32 mm	7.5 A	Backshell	Free Hanging (In-Line)	Gold	Keyed	IP67 - Dust Tight, Waterproof	Copper Alloy	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

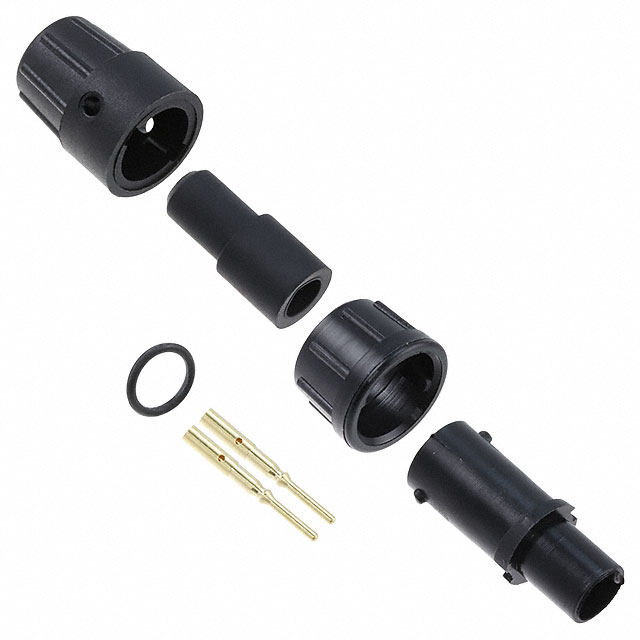

2 Position Circular Connector Plug, Male Pins Crimp
