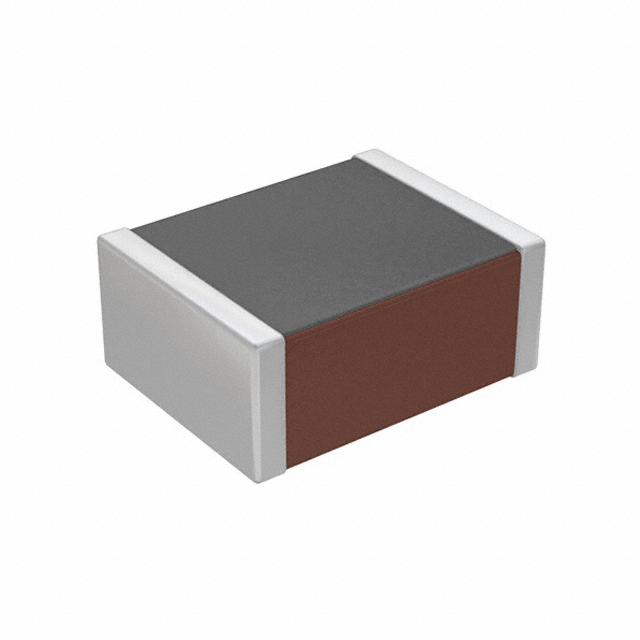

HF70ACB322513-T
ObsoleteTDK Corporation
FERRITE BEAD 52 OHM 1210 1LN
HF70ACB322513-T
ObsoleteTDK Corporation
FERRITE BEAD 52 OHM 1210 1LN
Description
General part information
HF70ACB322513-T
52 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1210 (3225 Metric) 400mA 300mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | HF70ACB322513-T |
|---|---|
| Current Rating (Max) | 400 mA |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.059 in |
| Impedance | 52 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
