09BL4MX

Active

Switchcraft Inc.

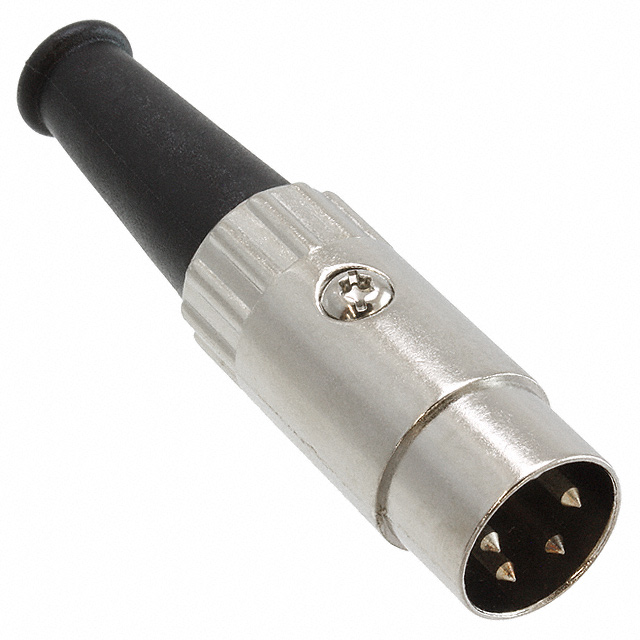

CONN PLUG MALE DIN 4POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 4POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	09BL4MX

Backshell Material, Plating	Nickel, Die Cast
Color	Silver
Connector Type	Plug, Male Pins
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Orientation	3
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN (210 Degree)
Termination	Solder

CONN PLUG MALE DIN 4POS SOLDER

Part	Insert Material	Primary Material	Color	Termination	Orientation	Backshell Material, Plating	Number of Positions	Mounting Type	Fastening Type	Connector Type	Features	Shell Finish	Shell Size - Insert	Shell Material
Switchcraft Inc. 09BL4MX	Plastic	Metal	Silver	Solder	3	Die Cast, Nickel	4	Free Hanging (In-Line)	Push-Pull	Male Pins, Plug	Backshell, Cable Clamp, Strain Relief	Nickel	DIN (210 Degree)	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Solder
