1441-30

Active

Hammond Manufacturing

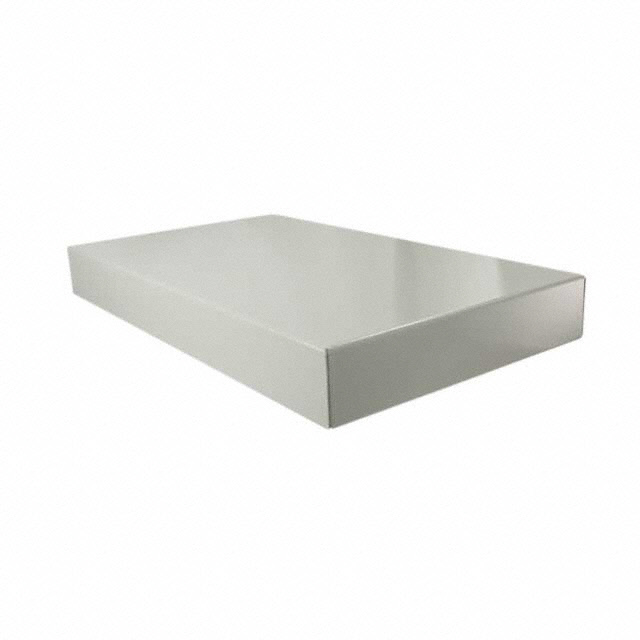

CHASSIS STEEL GRAY 17"L X 10"W

Deep-Dive with AI

Search across all available documentation for this part.

1441-30

Active

Hammond Manufacturing

CHASSIS STEEL GRAY 17"L X 10"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.43
		5	$ 39.67
		10	$ 37.08
		25	$ 33.90
		50	$ 32.95

Description

General part information

1441 Series

Chassis Metal, Steel Gray Open End(s) 17.000" L x 10.000" W (431.80mm x 254.00mm) X 2.040" (51.82mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1441-30	1441 Series

Area (L x W)	1097 cm˛	103 - 1316 cm˛
Area (L x W)	170 in²	16 - 204 in˛
Area (L x W)	-	24 - 128 in²
Area (L x W)	-	155 - 826 cm²
Area (L x W)	-	35 - 238 in²
Area (L x W)	-	226 - 1535 cm²
Area (L x W)	-	167 in²
Color	Gray	Gray, Black
Container Type	Chassis	Chassis
Design	Open End(s)	Open End(s)
Features	Hardware not Provided	Hardware not Provided
Height [z]	51.82 mm	26.42 - 127 mm
Height [z]	2.04 in	1.04 - 5 in
Material	Metal, Steel	Metal, Steel, Wood, Metal, Steel
Size / Dimension	-	7.928 "
Size / Dimension	-	11.928 "
Size / Dimension	-	101.6 - 127 mm
Size / Dimension	-	254 - 304.8 mm
Size / Dimension [x]	431.8 mm	101.6 - 431.8 mm
Size / Dimension [x]	17 in	4 - 17 in
Size / Dimension [y]	254 mm	101.6 - 429.21 mm
Size / Dimension [y]	10 in	4 - 16.898 in
Thickness	20	20
Thickness	-	18 Gauge
Weight	3.2 lbs	0.394 - 10 lb
Weight	1.5 kg	1 - 997.9 g
Weight	-	2.6 kg

1441 Series

CHASSIS STEEL GRAY 12"L X 8"W

Part	Material	Weight	Weight	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Thickness	Color	Design	Features	Container Type	Size / Dimension [y]	Size / Dimension [x]	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1441-22	Metal, Steel	178.72 g	0.394 lb	51.82 mm	2.04 in	12 in	8 in	304.8 mm	203.2 mm	96 in˛	619 cm˛	20	Gray	Open End(s)	Hardware not Provided	Chassis
Hammond Manufacturing 1441-22BK3	Metal, Steel	907.2 g	2 lbs	51.82 mm	2.04 in	12 in	8 in	304.8 mm	203.2 mm	96 in˛	619 cm˛	20	Black	Open End(s)	Hardware not Provided	Chassis
Hammond Manufacturing 1441-22BK3CWW	Metal, Steel, Wood			48.97 mm	1.928 in			302.97 mm	201.37 mm	94.5 in˛	610 cm˛	20	Black	Open End(s)		Chassis	7.928 "	11.928 "
Hammond Manufacturing 1441-24BK3CWW	Metal, Steel, Wood			74.37 mm	2.928 in			302.97 mm	201.37 mm	94.5 in˛	610 cm˛	20	Black	Open End(s)		Chassis	7.928 "	11.928 "
Hammond Manufacturing 1441-32	Metal, Steel	1.7 kg	3.7 lbs	77.22 mm	3.04 in	17 in	10 in	431.8 mm	254 mm	170 in²	1097 cm˛	20	Gray	Open End(s)	Hardware not Provided	Chassis
Hammond Manufacturing 1441-36BK3	Metal, Steel	2.4 kg	5.3 lbs	77.22 mm	3.04 in	17 in	12 "	431.8 mm	304.8 mm	204 in²	1316 cm²		Black	Open End(s)	Hardware not Provided	Chassis			18 Gauge
Hammond Manufacturing 1441-6	Metal, Steel	249.48 g	0.55 lb	51.82 mm	2.04 in	4 in	4 "	101.6 mm	101.6 mm	16 in˛	103 cm˛	20	Gray	Open End(s)	Hardware not Provided	Chassis
Hammond Manufacturing 1441-26BK3	Metal, Steel	1.2 kg	2.6 lbs	51.82 mm	2.04 in	16 in	8 in	406.4 mm	203.2 mm			20	Black	Open End(s)	Hardware not Provided	Chassis				128 in²	826 cm²
Hammond Manufacturing 1441-30	Metal, Steel	1.5 kg	3.2 lbs	51.82 mm	2.04 in	17 in	10 in	431.8 mm	254 mm	170 in²	1097 cm˛	20	Gray	Open End(s)	Hardware not Provided	Chassis
Hammond Manufacturing 1441-42	Metal, Steel	4.5 kg	10 lbs	127 mm	5 in	17 in	14 in	431.8 mm	355.6 mm				Gray	Open End(s)	Hardware not Provided	Chassis			18 Gauge			238 in²	1535 cm²
