0816ACP188
ActiveKanebridge
SELF-TAPPING SCREW - TYPE A - PH
0816ACP188
ActiveKanebridge
SELF-TAPPING SCREW - TYPE A - PH
Description
General part information
0816ACP188

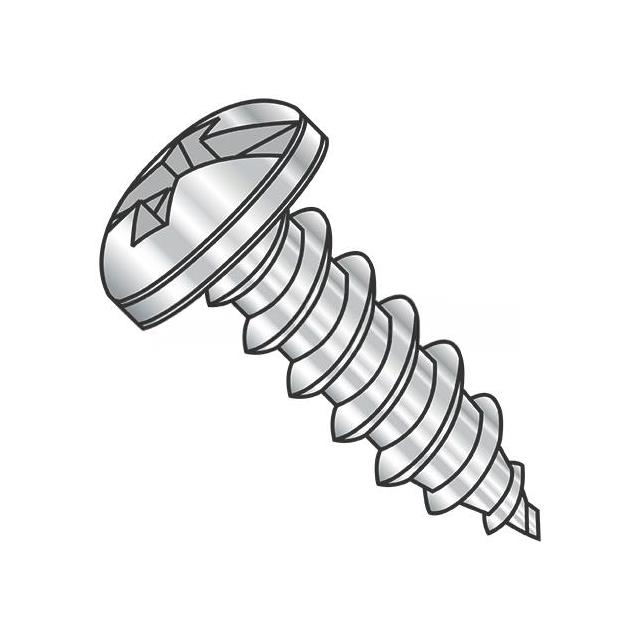

#8-15 Pan Head Self-Tapping Screw Phillips & Slotted Combo Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0816ACP188 |
|---|---|
| Drive Type | Phillips & Slotted Combo |
| Features | Standard |
| Head Diameter | 0.314 in |
| Head Height | 0.11 in |
| Length - Below Head | 1 in |
| Length - Overall | 1.11 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 15 mm |
| Thread Size (Min) | 8 mm |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
