10159559-410221RLF

Active

Amphenol ICC (FCI)

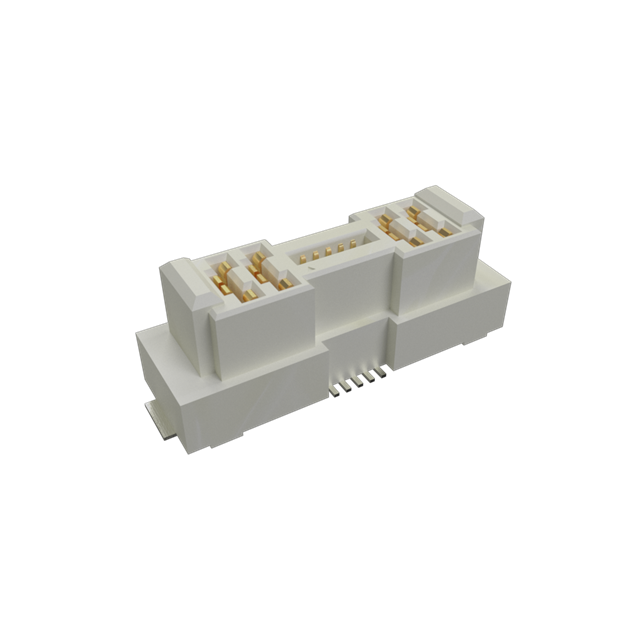

COMBOSTAK VERTICAL RECEPTACLE 2P

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

COMBOSTAK VERTICAL RECEPTACLE 2P

Technical Specifications

Parameters and characteristics for this part

Specification	10159559-410221RLF

Connector Type	Receptacle
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Female Blade Socket
Fastening Type	Detent Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Natural
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Thermoplastic
Mated Stacking Heights	10 mm, 9 mm, 12 mm, 11 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 V

Part	Insulation Material	Termination	Contact Shape	Mated Stacking Heights	Features	Fastening Type	Voltage Rating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Contact Finish - Mating	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Number of Rows	Style	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions
Amphenol ICC (FCI) 10159559-A30221RLF	Thermoplastic	Solder	Rectangular	9 mm 10 mm 11 mm 12 mm	Board Guide Pick and Place Solder Retention	Detent Lock	100 V	0.303 in	7.7 mm	0.203 Ám	8 Áin	UL94 V-0	Natural	Female Blade Socket	30	10	Gold or Gold GXT™	Copper Alloy	Surface Mount	125 °C	-40 °C	All	2	Board to Board Cable	0.031 in	0.8 mm	Receptacle
Amphenol ICC (FCI) 10159559-410221RLF	Thermoplastic	Solder	Rectangular	9 mm 10 mm 11 mm 12 mm	Board Guide Pick and Place Solder Retention	Detent Lock	100 V	0.303 in	7.7 mm	0.203 Ám	8 Áin	UL94 V-0	Natural	Female Blade Socket			Gold or Gold GXT™	Copper Alloy	Surface Mount	125 °C	-40 °C	All	2	Board to Board Cable	0.031 in	0.8 mm	Receptacle	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 (10 + 4 Power) Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold or Gold, GXT™
