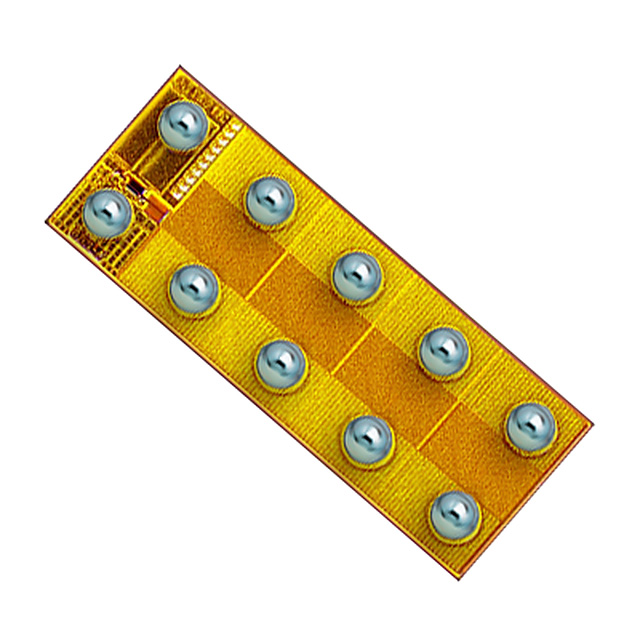

EPC2112ENGRT
ObsoleteEfficient Power Conversion Corporation
IC LOW SIDE DRIVER 10A 10BGA
Deep-Dive with AI
Search across all available documentation for this part.
EPC2112ENGRT
ObsoleteEfficient Power Conversion Corporation
IC LOW SIDE DRIVER 10A 10BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC2112ENGRT |
|---|---|
| Applications | DC-DC Converters |
| Current - Output / Channel | 10 A |
| Current - Peak Output | 40 A |
| Interface | On/Off |
| Load Type | Inductive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Rds On (Typ) | 32 mOhm |
| Supplier Device Package | 10-BGA |
| Supplier Device Package [x] | 2.9 |
| Supplier Device Package [y] | 1.1 |
| Technology | Gallium Nitride (GaN) FETs |
| Voltage - Load | 160 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EPC2112 Series
Low Side Driver DC-DC Converters Gallium Nitride (GaN) FETs 10-BGA (2.9x1.1)
Documents
Technical documentation and resources
No documents available
