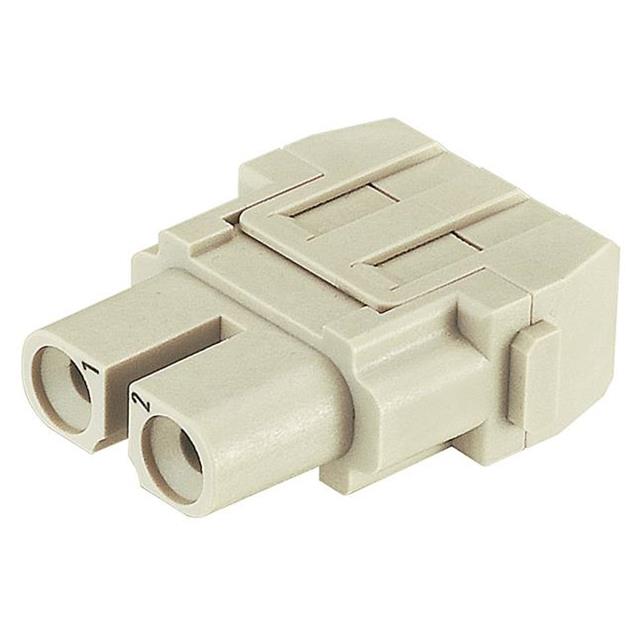

Specification	09140023103

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating	31 A
Gender	Female
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Termination Style	Crimp
Voltage Rating	1000 V

09140023 Series

Part	Material Flammability Rating	Housing Material	Color	Contact Type	Gender	Connector Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Current Rating	Voltage Rating	Accessory Type	For Use With/Related Products	Specifications
HARTING 09140023021	UL94 V-0	Polytetrafluoroethylene PTFE	Gray	Han®	Male	Module without Contacts	2	125 °C	-40 °C	Crimp	16 A
HARTING 09140023502	UL94 V-0	PC Polycarbonate	Blue		Female	Module Pneumatic	2	85 °C	-40 °C	Crimp
HARTING 09140023025	UL94 V-0	PC Polycarbonate Polytetrafluoroethylene PTFE	Gray	Han®	Male	Module without Contacts	2	125 °C	-40 °C	Crimp	16 A	2.5 kV
HARTING 09140023003	UL94 V-0	PC Polycarbonate	Gray	Han® C	Male	Module without Contacts	2	125 °C	-40 °C	Crimp	31 A	1000 V
HARTING 09140023123	UL94 V-0	Polytetrafluoroethylene PTFE	Gray	Han® C	Female	Module without Contacts	2	125 °C	-40 °C	Crimp	40 A
HARTING 09140023002	UL94 V-0	PC Polycarbonate	Gray	Han® C	Male	Module without Contacts	2	125 °C	-40 °C	Crimp	40 A	600 V
HARTING 09140023141	UL94 V-0	PC Polycarbonate	Gray	Han-Modular®	Female	Module without Contacts	2	125 °C	-40 °C	Crimp	70 A	1000 V
HARTING 09140023161	UL94 V-0	PC Polycarbonate	Gray		Female	Module without Contacts	2	85 °C	-40 °C
HARTING 09140023121	UL94 V-0	Polytetrafluoroethylene PTFE	Gray	Han®	Female	Module without Contacts	2	125 °C	-40 °C	Crimp	16 A
HARTING 09140023001													Insert Frame	Han-Quintax® Modules	Male
